When it comes to selecting the right cable for your project, understanding the strength and properties of the material is crucial. The 1/8 inch vinyl coated stainless steel cable is a popular choice for many applications due to its balance of strength, flexibility, and corrosion resistance. This article explores the strength, construction, applications, and handling of this cable, providing you with a comprehensive guide to help you decide if it fits your needs.

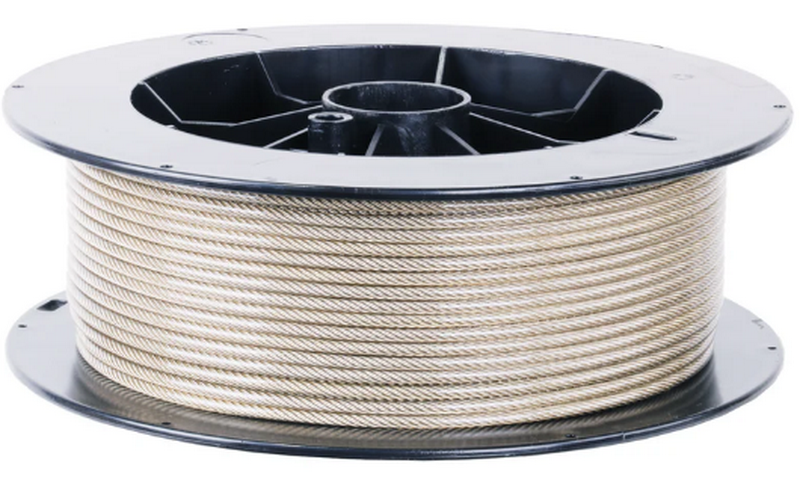

A 1/8 inch vinyl coated stainless steel cable is a type of wire rope made from stainless steel strands twisted together, then coated with a layer of vinyl (usually PVC). This coating protects the cable from environmental damage such as moisture, UV rays, abrasion, and dirt, extending its lifespan and maintaining its performance.
- The stainless steel used is typically Type 304, known for its corrosion resistance.
- The cable often has a 7x19 strand configuration, meaning 7 strands with 19 wires each, providing excellent flexibility and fatigue resistance.
- The vinyl coating increases the cable's diameter from 1/8 inch to approximately 3/16 inch.
The breaking strength of a 1/8 inch vinyl coated stainless steel cable is approximately 1,760 pounds (0.88 tons). This value represents the maximum force the cable can withstand before failure occurs.
- The vinyl coating slightly reduces the cable's breaking strength compared to uncoated stainless steel cable.
- The 7x19 strand configuration contributes to flexibility without compromising much strength.
- It is rated for overhead lifting, but for critical lifting applications, consultation with a rigging professional is recommended.
| Specification | Value |
|---|---|
| Diameter (bare cable) | 1/8 inch (0.125 inch) |
| Diameter (with vinyl coating) | 3/16 inch (0.1875 inch) |
| Breaking Strength | 1,760 lbs (0.88 tons) |
| Material | Type 304 Stainless Steel |
| Strand Configuration | 7x19 |
| Weight per foot | 0.04 lbs |
The vinyl coating on stainless steel cables offers several advantages:
- Corrosion Protection: Shields the cable from moisture, salt, and chemicals, making it ideal for marine and outdoor environments.
- Abrasion Resistance: Protects the cable from wear caused by friction, extending its usable life.
- UV Resistance: Prevents degradation from sunlight exposure.
- Smooth Handling: The coating makes the cable smoother to the touch, reducing injury risk and making installation easier.
- Seals Lubrication: Helps retain internal lubrication, reducing internal wire wear.
This cable is widely used in various industries and projects due to its versatility:
- Deck and Stair Railings: Provides a sleek, durable, and rust-resistant barrier.
- Marine Industry: Ideal for rigging, securing cargo, and other applications exposed to saltwater.
- Agriculture: Used in fencing and support systems.
- Industrial and Commercial: Employed in winches, pulleys, and lifting systems.
- Decorative Uses: Hanging lights, artwork, or signage where strength and appearance matter.
Proper handling and installation are key to maintaining the strength and longevity of the cable:
- Stripping the Vinyl Coating: When attaching fittings like wire rope clips or swage sleeves, strip the vinyl coating in the area of the connection to ensure maximum contact and strength.
- Use Correct Hardware: Use stainless steel thimbles, clips, and sleeves designed for 1/8 inch cable.
- Follow Recommended Torque: Tighten wire rope clips to manufacturer specifications to avoid slippage.
- Avoid Swaging Over Vinyl: Swaging should be done on the bare cable, not over the vinyl coating, to maintain termination strength.
- Inspect Regularly: Check for cracked or brittle coating, frayed wires, or abrasion damage and replace the cable if necessary.
| Feature | Stainless Steel Vinyl Coated Cable | Galvanized Steel Vinyl Coated Cable |
|---|---|---|
| Corrosion Resistance | Excellent, rust-resistant | Good, but coating can wear off |
| Strength (1/8 inch) | 1,760 lbs break strength | 2,000 lbs break strength |
| Durability | High, suitable for marine use | Moderate, best for short-term use |
| Flexibility | High (7x19 strand) | High |
| Cost | Higher | Lower |
Stainless steel vinyl coated cable is preferred for long-term outdoor and marine environments due to superior corrosion resistance, despite slightly lower break strength compared to galvanized cable[2][3].
To maximize the lifespan of your 1/8 inch vinyl coated stainless steel cable:
- Keep it clean by washing off salt, dirt, and debris.
- Avoid sharp bends or kinks that can damage strands.
- Replace immediately if vinyl coating cracks or wires fray.
- Store in a dry place when not in use.
The 1/8 inch vinyl coated stainless steel cable is a strong, flexible, and corrosion-resistant option for a wide range of applications. With a breaking strength of around 1,760 pounds and the added benefits of a protective vinyl coating, it excels in environments where durability and longevity are critical, such as marine, industrial, and architectural uses. Proper installation and maintenance are essential to leverage its full strength and lifespan. Whether for deck railings, rigging, or securing loads, this cable provides a reliable and aesthetically pleasing solution.
The breaking strength is approximately 1,760 pounds (0.88 tons), which is suitable for many rigging, railing, and securing applications.
Yes, vinyl coated stainless steel cables are ideal for marine environments due to their excellent corrosion resistance and protective coating.
Strip the vinyl coating where the clip will be installed to ensure proper grip, then tighten the clips according to manufacturer torque specifications.
Yes, the vinyl coating can be carefully stripped using a utility knife or wire cutters, especially where fittings need to be attached.
The 7x19 configuration offers a balance of flexibility and strength, making the cable easy to handle and resistant to fatigue from bending.
