Stainless steel capillary tubing is a crucial component in various industries, from aerospace to medical devices. Among the different sizes available, 3.17mm stainless steel capillary tubing has gained popularity due to its unique combination of strength and versatility. This article will explore the strength characteristics of 3.17mm stainless steel capillary tubing, its applications, and the factors that contribute to its robustness.

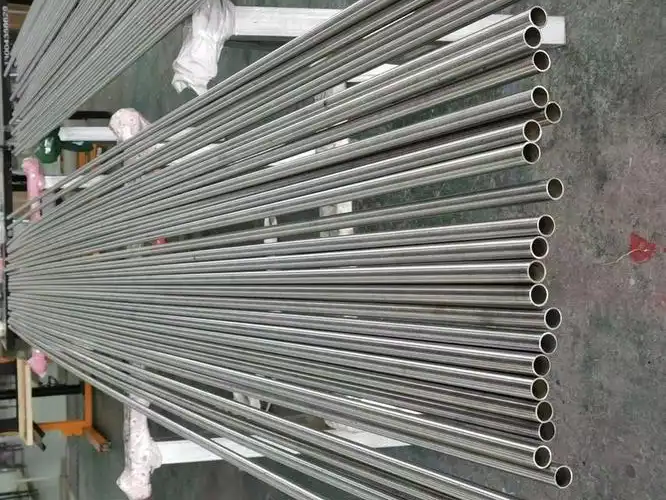

Stainless steel capillary tubing is a type of small-diameter, thin-walled tubing known for its precision and durability. The 3.17mm size refers to the outer diameter of the tube, which is approximately 1/8 inch. These tubes are typically made from high-quality stainless steel alloys, such as 304, 316, or 321, each offering specific properties suitable for different applications.
The strength of 3.17mm stainless steel capillary tubing is determined by several factors:
The type of stainless steel used plays a significant role in the tube's strength. For instance, 316 stainless steel offers higher corrosion resistance and strength compared to 304 stainless steel. The specific alloy composition affects properties such as tensile strength, yield strength, and hardness.
The wall thickness of 3.17mm stainless steel capillary tubing can vary, typically ranging from 0.1mm to 0.5mm. Thicker walls generally provide greater strength and pressure resistance, but may reduce flexibility.
The production method of the capillary tubing affects its strength. Seamless tubes, created through extrusion, often exhibit higher strength and uniformity compared to welded tubes.
To quantify the strength of 3.17mm stainless steel capillary tubing, several metrics are used:
1. Tensile Strength: This measures the maximum stress the tubing can withstand before breaking when stretched.
2. Yield Strength: This indicates the stress at which the tubing begins to deform plastically.
3. Burst Pressure: This represents the internal pressure required to cause the tubing to rupture.
4. Fatigue Strength: This measures the tubing's ability to withstand repeated stress cycles without failure.
Several factors can influence the strength of 3.17mm stainless steel capillary tubing:
Extreme temperatures can affect the strength of the tubing. High temperatures may reduce yield strength, while very low temperatures can increase brittleness.
Exposure to corrosive substances can weaken the tubing over time, potentially leading to failure.
Repeated bending, vibration, or impact can cause fatigue and potentially reduce the tubing's strength.
The strength and versatility of 3.17mm stainless steel capillary tubing make it suitable for various applications:
In the medical field, this tubing is used for precise fluid delivery in applications such as blood sampling and drug delivery systems. Its strength ensures reliability in critical situations.
The aerospace industry utilizes 3.17mm stainless steel capillary tubing in fuel injection systems and hydraulic lines, where high strength and reliability are paramount.
In automobiles, these tubes are used in brake lines and fuel injection systems, leveraging their strength to withstand high pressures and harsh conditions.
Chromatography equipment often incorporates 3.17mm stainless steel capillary tubing due to its precision and resistance to chemical interactions.
To ensure the reliability and safety of 3.17mm stainless steel capillary tubing, various tests are conducted:
This test involves stretching the tubing until it breaks, measuring the maximum force it can withstand.
Tubes are subjected to increasing internal pressure to determine their burst pressure and identify any weak points.
Repeated stress cycles are applied to assess the tubing's long-term durability.
Several methods can be employed to improve the strength of 3.17mm stainless steel capillary tubing:
Proper heat treatment can optimize the microstructure of the stainless steel, enhancing its strength and durability.
Techniques like nitriding or carburizing can increase surface hardness and wear resistance.
Adding specific elements to the stainless steel composition can improve strength, corrosion resistance, or other desired properties.
To understand the strength of 3.17mm stainless steel capillary tubing in context, it's useful to compare it with other materials:
| Material | Tensile Strength (MPa) | Corrosion Resistance | Cost |
|---|---|---|---|
| 316 SS | 515-690 | Excellent | High |
| 304 SS | 505-750 | Very Good | Moderate |
| Titanium | 345-620 | Excellent | Very High |
| Aluminum | 230-570 | Good | Low |
In a recent aerospace project, 3.17mm stainless steel capillary tubing was used in a satellite's propulsion system. The tubing successfully withstood extreme temperature fluctuations and high pressures, demonstrating its reliability in harsh space environments.
A breakthrough in minimally invasive surgery utilized 3.17mm stainless steel capillary tubing for a novel drug delivery system. The tubing's strength and precision allowed for accurate medication dosing while withstanding the stresses of insertion and body movement.
Ongoing research aims to further enhance the strength and capabilities of 3.17mm stainless steel capillary tubing:
Metallurgists are developing new stainless steel alloys with improved strength-to-weight ratios and enhanced corrosion resistance.
Incorporating nanoparticles into the stainless steel matrix could potentially increase strength without compromising flexibility.
Research is underway to develop "smart" capillary tubing that can adapt its properties based on environmental conditions.
The strength and durability of 3.17mm stainless steel capillary tubing contribute to its sustainability:
The high strength and corrosion resistance of these tubes result in longer service life, reducing the need for frequent replacements.
Stainless steel is 100% recyclable, making it an environmentally friendly choice for capillary tubing applications.
In some applications, the strength of 3.17mm stainless steel capillary tubing allows for thinner walls, potentially reducing weight and improving energy efficiency in systems where it's used.
To maintain the strength and integrity of 3.17mm stainless steel capillary tubing:
1. Regular Inspection: Check for signs of wear, corrosion, or damage.
2. Proper Cleaning: Use appropriate cleaning agents to prevent chemical damage.
3. Avoid Overstraining: Stay within the specified pressure and temperature limits.
4. Proper Storage: Store in a clean, dry environment to prevent corrosion.
Various standards govern the production and use of 3.17mm stainless steel capillary tubing:
- ASTM A269: Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
- ISO 9626: Stainless steel needle tubing for the manufacture of medical devices
- ASME BPE: Bioprocessing Equipment Standard
Adherence to these standards ensures consistent quality and reliability in the strength of 3.17mm stainless steel capillary tubing.
3.17mm stainless steel capillary tubing demonstrates remarkable strength, making it an invaluable component in various high-performance applications. Its ability to withstand high pressures, resist corrosion, and maintain structural integrity under diverse conditions underscores its importance in industries ranging from aerospace to medical technology. As research continues and new applications emerge, the strength and versatility of this tubing will likely play an even more significant role in future technological advancements.
The maximum pressure depends on factors such as wall thickness and specific alloy composition. Typically, 3.17mm stainless steel capillary tubing can withstand pressures ranging from 1000 to 5000 PSI, but some specialized versions can handle even higher pressures.
Temperature can significantly impact the strength of the tubing. At very high temperatures (above 800°C), the strength begins to decrease. Conversely, at extremely low temperatures, the tubing may become more brittle. However, within normal operating temperatures (-50°C to 500°C), the tubing maintains its strength properties effectively.
Yes, 3.17mm stainless steel capillary tubing can be bent to a certain degree without significant loss of strength. However, the bending radius should typically be no less than 5 times the outer diameter of the tube to avoid weakening or kinking. Proper bending techniques and tools should be used to maintain the tube's integrity.
Generally, smaller diameter tubing like 3.17mm can withstand higher internal pressures compared to larger diameter tubing of the same wall thickness. This is due to the hoop stress being distributed over a smaller area. However, larger diameter tubing may have advantages in terms of flow capacity and resistance to external crushing forces.
Signs that the tubing is approaching its strength limit include visible deformation, microscopic cracks, or a slight increase in diameter under pressure. In critical applications, non-destructive testing methods like ultrasonic testing or eddy current testing can be used to detect internal flaws before failure occurs. Regular inspections and pressure tests can help identify potential issues before they become critical.
