1x19 stainless steel wire rope is renowned for its exceptional strength and durability, making it a preferred choice in various applications, including marine rigging, architectural structures, and industrial settings. This article delves into the strength, construction, and uses of 1x19 stainless steel wire rope, providing insights into its specifications and applications.

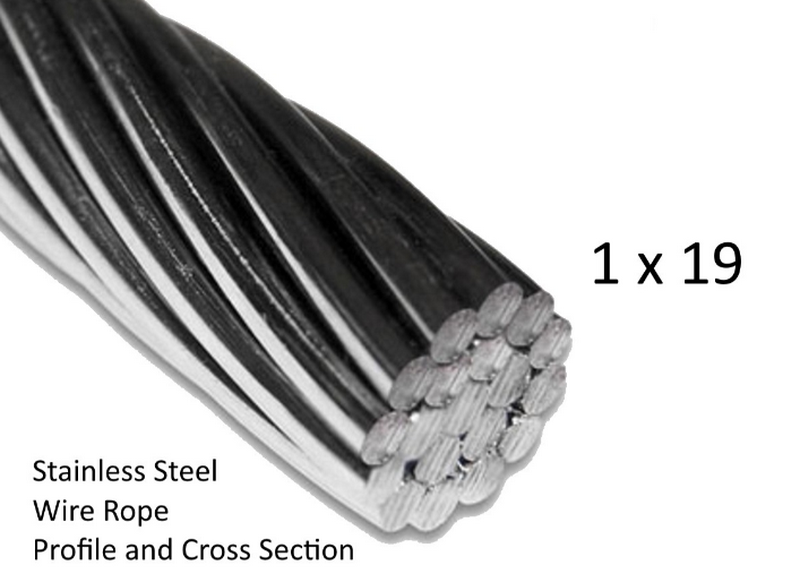

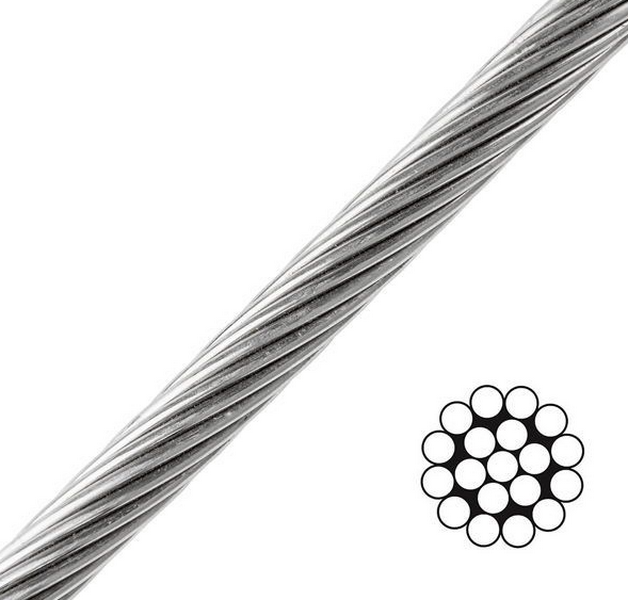

1x19 stainless steel wire rope is constructed with a single strand of 19 wires, which are tightly wound together. This construction provides a high metallic cross-sectional area, resulting in a strong and rigid cable with minimal stretch. The 1x19 configuration is less flexible compared to other types like 7x7 or 7x19, but it offers superior strength and resistance to corrosion, especially when made from 316 stainless steel.
The strength of 1x19 stainless steel wire rope is measured by its Minimum Breaking Load (MBL), which varies based on the diameter of the cable. For instance, a 5mm diameter 1x19 stainless steel wire rope typically has an MBL of about 20.6 kN (2,100 kg), while a larger 12mm diameter cable can have an MBL of up to 104 kN (10,600 kg)[2][4].
Table 1: Specifications of 1x19 Stainless Steel Wire Rope
| Diameter (mm) | MBL (kN) | MBL (kg) | Weight (kg/100m) |
|---|---|---|---|
| 1 | 0.87 | 99 | 0.49 |
| 2 | 3.30 | 337 | 1.98 |
| 3 | 7.42 | 757 | 4.46 |
| 4 | 13.20 | 1,350 | 7.93 |
| 5 | 20.60 | 2,100 | 12.40 |
| 6 | 29.70 | 3,030 | 17.80 |
| 8 | 49.40 | 5,040 | 31.70 |
| 10 | 77.20 | 7,870 | 49.50 |
| 12 | 104.00 | 10,600 | 71.30 |
1x19 stainless steel wire rope is widely used in:
- Marine Rigging: It is commonly used as standing rigging on sailboats due to its strength and resistance to corrosion[3][4].
- Architectural Applications: Often used in balustrades, stair railings, and deck railings for its sleek appearance and durability[5][7].
- Industrial Settings: Used in lifting and hoisting applications where high strength and minimal stretch are required[6].
The 1x19 construction is made from a single strand of 19 wires, which are tightly wound to create a rigid and strong cable. The most common material used is 316 stainless steel, which offers excellent corrosion resistance, especially in marine environments. The addition of molybdenum in 316 stainless steel enhances its resistance to pitting and crevice corrosion compared to 304 stainless steel[3][7].
When using 1x19 stainless steel wire rope, it's crucial to follow safety guidelines:
- Working Load Limit (WLL): The application load should not exceed 20% of the Minimum Breaking Load (MBL) to ensure safety[3].
- Inspection and Maintenance: Regular inspection is necessary to identify any signs of wear or corrosion.
When comparing 1x19 and 7x19 stainless steel wire ropes, the key differences lie in their strength and flexibility. The 1x19 construction offers superior strength but is less flexible, making it ideal for applications where rigidity is crucial. In contrast, the 7x19 construction provides more flexibility, which is beneficial in applications requiring frequent bending or movement.
Regular maintenance is crucial for extending the lifespan of 1x19 stainless steel wire rope. Users should inspect the cable for signs of wear, corrosion, and ensure proper lubrication to prevent damage from friction. Regular cleaning and drying can also help maintain its corrosion resistance.
The load capacity of 1x19 stainless steel wire rope varies significantly with its diameter. It is essential to consult manufacturer specifications to determine the appropriate load limits for specific applications. Additionally, the Working Load Limit (WLL) should not exceed 20% of the Minimum Breaking Load (MBL) to ensure safety.
Table 2: Load Capacity Considerations
| Diameter (mm) | Load Capacity (kg) | WLL (kg) |
|---|---|---|
| 5 | 2,100 | 420 |
| 6 | 3,030 | 606 |
| 8 | 5,040 | 1,008 |
| 10 | 7,870 | 1,574 |
| 12 | 10,600 | 2,120 |
1x19 stainless steel wire rope, especially when made from 316 stainless steel, exhibits excellent corrosion resistance. This makes it suitable for use in harsh environments, such as marine and industrial settings where exposure to saltwater or chemicals is common.
The strength of 1x19 stainless steel wire rope is tested using various methods, including tensile testing and load testing. These tests ensure that the wire rope meets industry standards for safety and performance. Certification from reputable organizations is also important to verify compliance with international standards.
1x19 stainless steel wire rope is a robust and reliable choice for applications requiring high strength and minimal flexibility. Its widespread use in marine, architectural, and industrial settings underscores its durability and resistance to corrosion. Understanding its specifications and applications is essential for selecting the right wire rope for specific needs.
1x19 construction refers to a wire rope made from a single strand of 19 wires, providing high strength and minimal flexibility.
Common applications include marine rigging, architectural structures like balustrades, and industrial lifting applications.
316 stainless steel offers better corrosion resistance than 304 due to the addition of molybdenum, which enhances resistance to pitting and crevice corrosion.
The application load should not exceed 20% of the Minimum Breaking Load (MBL) to ensure safety.
No, 1x19 stainless steel wire rope is not suitable for applications requiring flexibility due to its stiff construction.
