Stainless steel coiled tubing, particularly the 12.7mm variety, has gained widespread recognition for its exceptional strength, durability, and versatility across various industries. This article delves into the mechanical properties of 12.7mm stainless steel coiled tubing, comparing it with other materials and exploring its applications, advantages, and limitations.

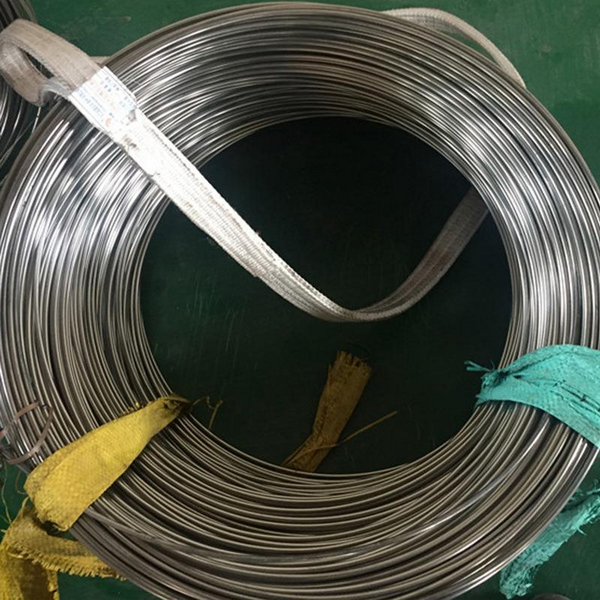

Stainless steel coiled tubing is a type of tubing made from stainless steel that is coiled into a roll for easy storage and transportation. The 12.7mm size refers to the outer diameter of the tubing, which is approximately 0.5 inches. This specific size is commonly used in various industries due to its balance of strength and flexibility.
The strength of 12.7mm stainless steel coiled tubing is primarily determined by its grade. The most common grades used are 304 and 316 stainless steel.
- Tensile strength: approximately 515 MPa (75,000 psi)
- Yield strength: about 210 MPa (30,000 psi)
- Excellent corrosion resistance
- Good mechanical properties
- Tensile strength: around 580 MPa (84,000 psi)
- Yield strength: about 240 MPa (30,000 psi)
- Better corrosion resistance than 304 due to the addition of molybdenum
These properties make 12.7mm stainless steel coiled tubing suitable for high-pressure applications and environments where corrosion resistance is critical.
To understand how strong 12.7mm stainless steel coiled tubing is compared to other materials, let's examine several key factors:
Stainless steel coiled tubing generally has a higher tensile strength compared to many other materials:
- Copper: 200-400 MPa
- Aluminum: 90-600 MPa
- Carbon Steel: 400-850 MPa
- Plastic (HDPE): 20-40 MPa
Stainless steel, especially grades 304 and 316, offers superior corrosion resistance compared to carbon steel and many other metals. This makes it ideal for use in harsh environments or applications involving corrosive substances.
12.7mm stainless steel coiled tubing can withstand a wide range of temperatures, from cryogenic to high heat, without significant loss of strength or corrosion resistance. This is a significant advantage over plastic tubing, which has limited temperature resistance.
While heavier than aluminum or plastic, stainless steel coiled tubing offers a better strength-to-weight ratio than many other materials, making it suitable for applications where both strength and weight are considerations.
The unique properties of 12.7mm stainless steel coiled tubing make it suitable for a wide range of applications across various industries:
- Downhole tools
- Chemical injection lines
- Hydraulic control lines
- Transfer of corrosive chemicals
- High-pressure process lines
- Hygienic fluid transfer
- Brewing and distilling equipment
- Clean room applications
- Sterile fluid transfer
- Hydraulic and pneumatic systems
- Fuel lines
- Saltwater-resistant piping systems
- Offshore platform equipment
The high tensile and yield strength of 12.7mm stainless steel coiled tubing make it resistant to deformation under pressure and capable of withstanding high stress levels.
Stainless steel's inherent corrosion resistance protects against rust and other forms of corrosion, extending the lifespan of the tubing and reducing maintenance costs.
12.7mm stainless steel coiled tubing maintains its mechanical properties across a wide temperature range, making it suitable for both cryogenic and high-temperature applications.
The coiled nature of the tubing allows for easy installation in complex systems and tight spaces, reducing installation time and costs.
Coiled tubing can be manufactured in long, continuous lengths, minimizing the need for joints and reducing potential leak points.
The smooth surface of stainless steel makes it easy to clean and sterilize, making it ideal for use in food, beverage, and pharmaceutical industries.
While 12.7mm stainless steel coiled tubing offers numerous advantages, it's important to consider its limitations:
Stainless steel is generally more expensive than carbon steel or plastic alternatives, which may impact project budgets.
Although it has a good strength-to-weight ratio, stainless steel is heavier than some alternatives like aluminum or plastic, which may be a consideration in weight-sensitive applications.
Some grades of stainless steel can become slightly magnetic when work-hardened, which may be a concern in certain specialized applications.
Stainless steel has a higher coefficient of thermal expansion compared to carbon steel, which needs to be accounted for in design and installation.
To ensure the reliability and performance of 12.7mm stainless steel coiled tubing, various tests are conducted:
This test measures the tubing's ability to withstand longitudinal stress, providing data on its ultimate tensile strength and yield strength.
This test determines the maximum internal pressure the tubing can withstand before failure, crucial for high-pressure applications.
Cyclic loading tests assess the tubing's ability to withstand repeated stress cycles, important for applications involving pulsating pressures or vibrations.
Various corrosion tests, such as salt spray tests or immersion tests, evaluate the tubing's resistance to different corrosive environments.
The development of 12.7mm stainless steel coiled tubing continues to evolve, with several trends shaping its future:
Research into new stainless steel alloys aims to further improve strength, corrosion resistance, and other properties.
Integration of sensors and monitoring systems within the tubing for real-time performance data and predictive maintenance.
3D printing technologies may enable the production of complex geometries and custom fittings for specialized applications.
Efforts to reduce the environmental impact of stainless steel production and increase the use of recycled materials.
A major oil company implemented 12.7mm stainless steel coiled tubing for their offshore chemical injection systems. The tubing's corrosion resistance and high-pressure capabilities resulted in a 30% reduction in maintenance costs and improved system reliability.
A dairy product manufacturer replaced their existing piping system with 12.7mm stainless steel coiled tubing. The change led to improved hygiene standards, reduced contamination risks, and a 20% increase in production efficiency due to fewer system shutdowns for cleaning and maintenance.
An aircraft manufacturer incorporated 12.7mm stainless steel coiled tubing in their hydraulic systems. The tubing's high strength-to-weight ratio and excellent fatigue resistance contributed to a 15% weight reduction in the overall system without compromising performance or safety.
Proper installation and maintenance are crucial for maximizing the performance and lifespan of 12.7mm stainless steel coiled tubing:
- Use appropriate bending tools to avoid kinking or damaging the tubing
- Ensure proper support and anchoring to prevent excessive stress
- Use compatible fittings and connectors to maintain system integrity
- Regular inspections for signs of corrosion or damage
- Proper cleaning and flushing procedures to prevent buildup of contaminants
- Adherence to recommended pressure and temperature limits
While stainless steel is known for its durability and recyclability, it's important to consider the environmental impact of 12.7mm stainless steel coiled tubing:
Stainless steel is 100% recyclable, and new stainless steel products typically contain a significant percentage of recycled content.
The production of stainless steel is energy-intensive, but the long lifespan and recyclability of the material can offset this initial energy investment over time.
The durability and corrosion resistance of stainless steel coiled tubing can lead to reduced waste generation compared to less durable materials that require more frequent replacement.
12.7mm stainless steel coiled tubing stands out as a robust and versatile material, offering exceptional strength, corrosion resistance, and durability across a wide range of applications. Its superior mechanical properties, combined with the convenience of coiled packaging, make it an ideal choice for industries ranging from oil and gas to food processing and aerospace.
While it may come at a higher initial cost compared to some alternatives, the long-term benefits in terms of performance, maintenance reduction, and longevity often justify the investment. As technology advances, we can expect to see further improvements in the properties and applications of stainless steel coiled tubing, solidifying its position as a critical component in various industrial processes.
The strength of 12.7mm stainless steel coiled tubing, coupled with its corrosion resistance and flexibility, ensures that it will continue to play a crucial role in addressing the challenges of modern industrial applications, from high-pressure environments to sterile processing requirements.
12.7mm stainless steel coiled tubing is commonly used in various industries, including oil and gas for downhole tools and chemical injection lines, chemical processing for transfer of corrosive chemicals, food and beverage industry for hygienic fluid transfer, pharmaceutical manufacturing for clean room applications, and aerospace for hydraulic and pneumatic systems.
12.7mm stainless steel coiled tubing, particularly grades 304 and 316, typically has a tensile strength ranging from 515-580 MPa. This is generally lower than high-strength carbon steels, which can range from 400-850 MPa. However, stainless steel offers superior corrosion resistance, making it preferable in many environments where rust would be a concern.
Yes, 12.7mm stainless steel coiled tubing can be welded using appropriate techniques. However, care must be taken to avoid compromising its corrosion resistance during welding processes. It's important to use proper welding methods and materials compatible with the specific grade of stainless steel to maintain the integrity of the tubing.
Grade 316 contains molybdenum, which enhances its corrosion resistance compared to grade 304. This makes grade 316 more suitable for marine environments or chemical processing where exposure to corrosive substances occurs frequently. Grade 316 also has slightly higher tensile and yield strengths compared to grade 304.
Plastic tubing can be lighter and less expensive than 12.7mm stainless steel coiled tubing, making it preferable in applications where weight savings are prioritized over durability or pressure handling capabilities. However, plastic tubing lacks the strength, temperature resistance, and longevity of stainless steel, making stainless steel the better choice for high-pressure, high-temperature, or corrosive environments.
