When it comes to selecting wire rope or cable for various applications-whether for home projects, outdoor railings, or industrial use-understanding the strength and specifications of the cable is crucial. The 1/8 stainless steel cable from Home Depot is a popular choice due to its durability, corrosion resistance, and versatility. This article explores the strength, construction, typical uses, installation tips, and frequently asked questions about this cable, helping you make an informed decision for your next project.

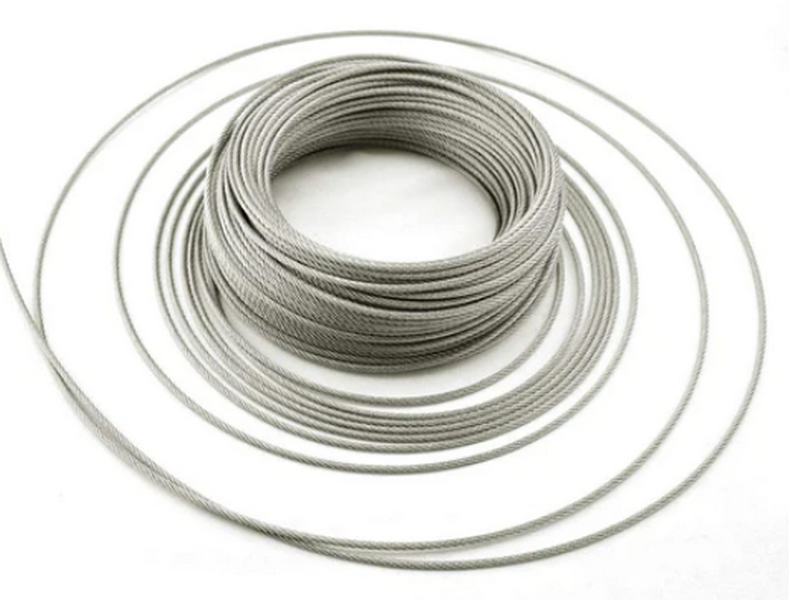

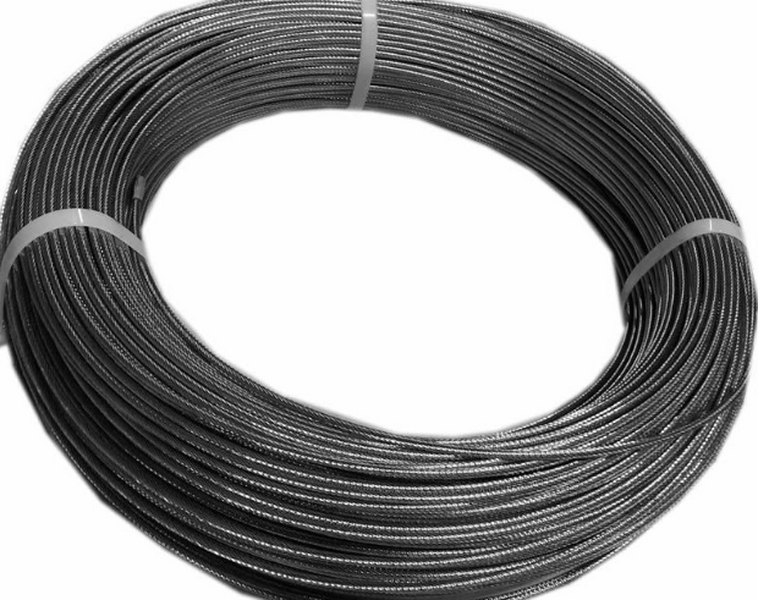

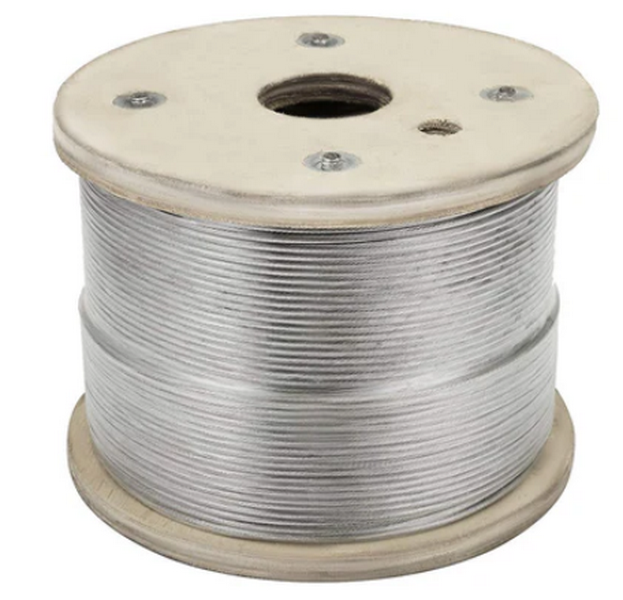

The 1/8 stainless steel cable refers to wire rope with a diameter of one-eighth of an inch (0.125 inches). It is commonly made from grade 304 or grade 316 stainless steel, with 316 offering higher corrosion resistance, especially in marine or salty environments. This cable is constructed from multiple strands of stainless steel wires twisted or braided together to form a strong, flexible rope.
The strength of a 1/8 inch stainless steel cable depends on its construction:
- Strand Construction: Common constructions include 1x7, 7x7, and 1x19 strands. For example, a 1x19 strand cable has one core wire with 18 wires wrapped around it, making it very rigid and strong.
- Working Load Limit (WLL): This is the maximum load the cable can safely handle during use. For 1/8 inch stainless steel cables sold at Home Depot:
- The Everbilt 1/8-inch stainless steel wire rope typically has a working load limit around 340 lbs.
- The VEVOR 1/8-inch T316 stainless steel cable with 1x19 strands can have a working load limit up to 2100 lbs, depending on the exact product and strand construction.
- Breaking Strength: The breaking strength is higher than the working load limit and represents the maximum force the cable can withstand before failure. For example, a 1/8 inch 316 stainless steel cable with 7x7 strands may have a breaking strength around 1700 lbs or more.
This range shows that the 1/8 stainless steel cable from Home Depot can be suitable for light to medium-duty applications, including railing systems, guy wires, and hanging projects, but it is not recommended for overhead lifting or heavy industrial use without proper engineering assessment.
- Cable Railing Systems: Used in decks, stairs, and balconies for a modern, sleek look while providing safety and durability.
- Garage Door Cables: Commonly used for counterbalance systems.
- Tie-Downs and Guy Wires: Securing antennas, flagpoles, and temporary structures.
- Animal Leashes and Tether Lines: Durable and weather-resistant for outdoor use.
- Hanging Signs and Decorations: Supports medium-weight hanging applications.
- DIY Projects: Crafts, fencing, and garden projects.
- Corrosion Resistance: Stainless steel, especially grade 316, offers excellent resistance to rust and corrosion, making it ideal for outdoor and marine environments.
- Durability: The cable resists wear and abrasion, ensuring a long service life.
- Flexibility: Depending on strand construction, the cable can be flexible enough for easy handling while maintaining strength.
- Availability: Home Depot offers various lengths and strand types, allowing customization for specific needs.
- Accessories: Clips, thimbles, and tensioners are available to facilitate secure installation.
- Use Proper Hardware: Stainless steel clips, thimbles, and quick links sized for 1/8 inch cable ensure secure connections and prevent cable damage.
- Tensioning: Use cable tensioners or turnbuckles to achieve the right tension without overstressing the cable.
- Cutting: Use wire rope cutters designed to prevent fraying.
- Protection: Vinyl-coated cables provide extra protection against abrasion and weather.
- Follow Safety Guidelines: Do not exceed the working load limit and avoid using for overhead lifting unless specifically rated.
- An Introduction to Stainless Steel Cable
This video explains the different grades and constructions of stainless steel cable, highlighting the differences between 1x7 and 1x19 strand constructions and their applications.
- How to Install the Muzata Stainless Steel Cable Railing
Step-by-step DIY installation guide for stainless steel cable railing systems, perfect for home projects.
The 1/8 stainless steel cable from Home Depot is a versatile, durable, and corrosion-resistant option for a wide range of applications, from cable railings to tie-downs and DIY projects. Its strength depends largely on the strand construction and grade of stainless steel, with working load limits ranging from a few hundred pounds to over two thousand pounds for heavy-duty variants. Proper installation with the right accessories and tools ensures maximum performance and longevity. Whether you need a cable for aesthetic railing systems or functional outdoor uses, the 1/8 stainless steel cable from Home Depot offers a reliable balance of strength and flexibility.
The working load limit varies by product and strand construction, but typical 1/8 inch stainless steel cables have a working load limit ranging from 340 lbs to 2100 lbs depending on whether it is a 7x7 or 1x19 strand construction.
Yes, stainless steel cables, especially grade 316, are highly resistant to corrosion and rust, making them ideal for outdoor applications such as railings, guy wires, and fencing.
Generally, 1/8 inch stainless steel cable from Home Depot is not rated for overhead lifting or heavy industrial lifting. It is best suited for light to medium-duty applications. Always check the working load limit and safety standards before use.
You will need stainless steel wire rope clips, thimbles, quick links, and tensioners designed for 1/8 inch cable. These accessories help secure the cable and prevent wear at connection points.
Use specialized wire rope cutters that cut cleanly without unraveling the strands. Alternatively, secure the cable end with tape before cutting to minimize fraying.
