Stainless steel seamless capillary tubing plays a crucial role in various industries, including medical, automotive, aerospace, and instrumentation. China has emerged as a major manufacturing hub for these tubes, owing to its advanced technology, skilled workforce, and cost-effective production methods. This article delves into the intricate processes involved in manufacturing stainless steel seamless capillary tubing in China, highlighting the key steps, quality control measures, and applications of these essential components. The demand for Stainless Steel Seamless Capillary Tubing in China has been steadily growing, driven by the expansion of these industries and the increasing need for precision components.
The production of high-quality stainless steel seamless capillary tubing begins with the selection of premium raw materials. Stainless steel, renowned for its exceptional corrosion resistance, durability, and strength, is the primary material used. Common grades include 304, 316L, and other special alloys, depending on the specific application requirements. The choice of stainless steel grade is often determined by the intended application of the tubing, with considerations such as operating temperature, chemical exposure, and pressure requirements playing a key role.
Stringent Quality Checks: Before commencing the manufacturing process, the raw materials undergo rigorous quality control checks to ensure they meet the required standards. These checks include:
- Chemical Composition Analysis: Verifying the precise chemical composition of the stainless steel to ensure it conforms to industry standards and specifications. This is typically done using spectrometry, which can accurately determine the percentage of each element present in the alloy.
- Surface Inspection: Examining the surface of the raw material for any defects, such as scratches, cracks, or inclusions, that could compromise the integrity of the final product. Visual inspection, microscopic examination, and non-destructive testing methods like ultrasonic testing are used to identify surface and sub-surface flaws.
- Mechanical Testing: Assessing the mechanical properties of the stainless steel, including tensile strength, yield strength, and elongation, to ensure it meets the required performance criteria. These tests are performed on samples of the raw material to verify that they meet the minimum requirements specified by industry standards.
A notable advancement in the production of seamless tubes is continuous casting. In this process, molten metal is continuously poured into a water-cooled mold, where it solidifies into a continuous billet. This technique ensures better uniformity and enhanced mechanical qualities in the tubes. Continuous casting offers several advantages over traditional casting methods, including improved grain structure, reduced segregation, and increased productivity.
Cold drawing is a crucial step in the manufacturing of stainless steel seamless capillary tubing. This process involves pulling the tube through a series of dies with progressively smaller diameters. The cold drawing process achieves the desired dimensions, enhances the surface finish, and improves the mechanical properties of the tubing. The number of drawing passes and the reduction in diameter per pass are carefully controlled to achieve the desired final dimensions and mechanical properties. Lubricants are used during the cold drawing process to reduce friction and prevent galling.
One of the crucial steps in the production of stainless steel capillary pipes is the tube drawing process. Here, the stainless steel tubes are drawn through a series of dies at decreasing diameters to achieve the desired dimensions. The tube drawing process not only imparts the required dimensions but also enhances the pipes' surface finish. Different drawing techniques, such as mandrel drawing and sinking, are used depending on the desired final dimensions and the properties of the stainless steel.
The sinking process is another method used to reduce the diameter and wall thickness of the tubing. In this process, the tube is pushed through a die without the use of an internal mandrel. The sinking process is typically used for producing tubes with relatively thin walls and tight tolerances. This process requires careful control of the die geometry and lubrication to prevent buckling or wrinkling of the tube.
Annealing is a heat treatment process used to relieve internal stresses and improve the ductility of the stainless steel tubing. The metal is heated above the point of re-crystallization and cooled to room temperature during the annealing process. The molecular bonds in metal tighten when it is shaped, making it rigid. The metal is put through an annealing process to regain its ductility. This makes the tubing more pliable and easier to work with in subsequent operations. The annealing temperature and cooling rate are carefully controlled to achieve the desired microstructure and mechanical properties.
Pickling removes impurities and pollutants like scale, rust, and grease from stainless steel. In order to give the stainless steel a neat, shiny appearance, the pickling process is essential.

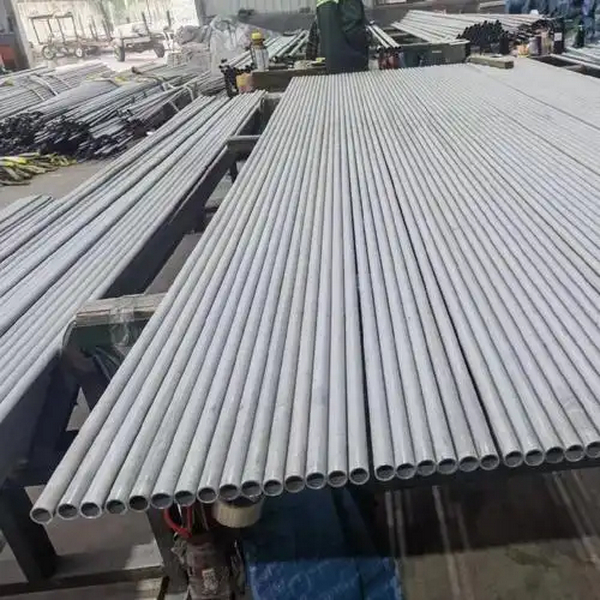

Straightening of the stainless steel seamless capillary tubing is very important to meet the accurate requirements of the applications. After straightening to pipes, each pipe is passed through the various tests.
The use of cutting equipment to cut pipes to the required length is part of the cutting procedure. To preserve dimensional precision, ensure a smooth, burr-free cut, and prevent material deformation, it uses high-precision cutting methods.
To make complex designs, bending operations include shaping stainless steel seamless capillary tubing into various forms. To produce bends in tubing with little deformation and precise angles, precision bending machinery is used.
The grade and application requirements have an impact on tube welding and forming. For welded micro tubing piping, the concentricity of welded tubing is far superior to seamless. The stainless steel welded capillary tubing are manufactured using the (Tungsten Inert Gas) High frequency automatic welded and coil precision plug (floating or mandrel) drawn process.
After the tube drawing and annealing processes, the stainless steel capillary tubing undergoes surface finishing treatments to enhance its appearance and corrosion resistance. Common surface finishing methods include:
- Polishing: Using abrasive materials to smooth the surface and remove any imperfections. Different grades of abrasive materials are used to achieve the desired surface roughness.
- Grinding: Removing surface defects and achieving a uniform surface finish. Grinding is typically used to remove larger imperfections or to achieve a specific surface texture.
- Buffing: Creating a bright, reflective surface. Buffing uses soft, abrasive wheels to create a high-gloss finish.
- Passivation: Forming a protective oxide layer on the surface to enhance corrosion resistance. Passivation involves treating the stainless steel with an acid solution to remove any free iron from the surface and promote the formation of a passive layer of chromium oxide.
Surface finishing not only contributes to the pipes' aesthetic appeal but also enhances their corrosion resistance. The choice of surface finishing method depends on the intended application of the tubing and the desired level of surface quality.
Maintaining precise dimensions and tight tolerances is critical in the manufacturing of stainless steel seamless capillary tubing. Manufacturers employ advanced metrology equipment and techniques to ensure that the tubing meets the required specifications.
- Dimensional Measurement: Using laser micrometers, optical comparators, and other precision instruments to measure the outer diameter, inner diameter, and wall thickness of the tubing. These measurements are taken at multiple points along the length of the tubing to ensure uniformity.
- Roundness Testing: Assessing the roundness of the tubing to ensure it meets the specified tolerances. Roundness is typically measured using a coordinate measuring machine (CMM) or a roundness tester.
- Straightness Testing: Measuring the straightness of the tubing to ensure it is free from bends or kinks. Straightness is typically measured using a laser scanner or a straightedge.
Advanced techniques such as eddy current testing and ultrasonic testing are also employed to detect any internal defects or variations in wall thickness. These tests are performed on 100% of the tubing to ensure that it meets the required quality standards.
Quality control is an integral part of the manufacturing process for Stainless Steel Seamless Capillary Tubing in China. Manufacturers adhere to strict quality control procedures to ensure that the tubing meets the required specifications and performance standards. These procedures include:
- In-process Inspections: Regular inspections are conducted throughout the manufacturing process to identify and correct any defects or deviations from the specified requirements.
- Final Inspections: A final inspection is performed on each batch of tubing to ensure that it meets all the required specifications and performance standards.
- Documentation and Traceability: Detailed records are maintained for each batch of tubing, including the raw material source, manufacturing process parameters, and inspection results. This documentation provides traceability and allows manufacturers to identify and address any issues that may arise.
Stainless steel seamless capillary tubing finds extensive use in a wide range of applications, including:
- Medical Equipment: In medical devices such as needles, catheters, and endoscopes, where precise fluid delivery and control are essential. The smooth inner surface of the tubing minimizes friction and ensures accurate fluid flow.
- Analytical Instrumentation: In analytical instruments such as gas chromatographs and high-performance liquid chromatographs (HPLC), where accurate sample introduction and separation are required. The narrow bore and precise dimensions of the tubing ensure optimal performance in these applications.
- Automotive Industry: In automotive systems such as fuel injection systems and hydraulic brake systems, where reliable fluid transfer is critical. The high strength and corrosion resistance of the tubing ensure reliable performance in harsh environments.
- Aerospace Industry: In aerospace applications such as hydraulic control systems and fuel lines, where high strength and corrosion resistance are essential. The lightweight and durable nature of the tubing make it ideal for these demanding applications.
- General Industrial Use: For pressure equipment and systems, measuring technology equipment, specialized food processing equipment in the food and nitrogen industry, ship construction, parts responsible for furnaces and boilers, and hydrogen discharge systems.
- High Precision: tight tolerances of ±0.02mm under ISO 9001:2015.
- Corrosion Resistance: Stainless steel is highly resistant to corrosion from a wide range of chemicals and environments.
- High Strength: Stainless steel has high tensile and yield strength, making it suitable for high-pressure applications.
- Excellent Durability: Stainless steel is a durable material that can withstand harsh conditions and prolonged use.
- Smooth Surface Finish: The cold drawing and surface finishing processes result in a smooth, uniform surface finish that minimizes friction and prevents contamination.
- Wide Range of Sizes: Stainless steel seamless capillary tubing is available in a wide range of sizes and wall thicknesses to suit various applications.
- Seamless Construction: The seamless construction of the tubing eliminates the risk of leaks or failures that can occur with welded tubing.
- Biocompatibility: Stainless steel is a biocompatible material, making it suitable for use in medical and pharmaceutical applications.
- Ease of Fabrication: Stainless steel seamless capillary tubing can be easily cut, bent, and formed to meet specific application requirements.
The manufacturing of stainless steel seamless capillary tubing in China involves a series of intricate processes, from raw material selection and quality control to cold drawing, annealing, and surface finishing. By employing advanced technology, skilled labor, and stringent quality control measures, Chinese manufacturers are able to produce high-quality Stainless Steel Seamless Capillary Tubing in China that meets the demanding requirements of various industries. The ongoing investments in research and development are driving further innovations in manufacturing techniques, quality control processes, and material selection, ensuring that Chinese manufacturers remain at the forefront of the industry. The future of Stainless Steel Seamless Capillary Tubing in China looks promising, with continued growth expected in both domestic and international markets.

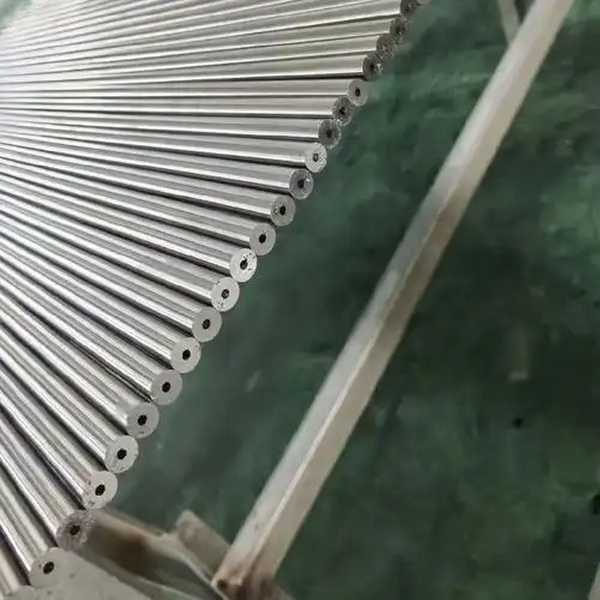

Capillary tubing is made from Type 316L stainless steel, which ensures it is seamless, fully annealed, and highly durable.
The manufacturing process involves extruding the tubing from a billet of Type 316L stainless steel, re-drawing the material through a die, heat-treating in a vacuum furnace, and cleaning, polishing, and passivating the tubing to achieve the desired dimensions and finish.
This tubing is ideal for high-pressure applications such as High-Performance Liquid Chromatography (HPLC), gas chromatography, chemical processing, and analytical instrumentation.
Annealing removes the temper or stiffness from the tubing, making it easy to bend and form without compromising its strength.
Key features include a small inside diameter and heavy wall for high-pressure applications, wide chemical compatibility, prefinished with square, burr-free ends and interiors for minimal dead volume connections, and cleaned, polished, and passivated for immediate use.
