Manufacturing a stainless steel tube sheet is a critical process in industries such as petrochemical, power generation, and heat exchangers, where tube sheets provide structural support and sealing for tubes within equipment. This article delves deeply into the comprehensive manufacturing process of stainless steel tube sheets, covering raw material selection, machining, drilling, welding, and finishing steps. Alongside detailed explanations, we include relevant images and videos to illustrate each stage, enhancing understanding of this essential industrial component.

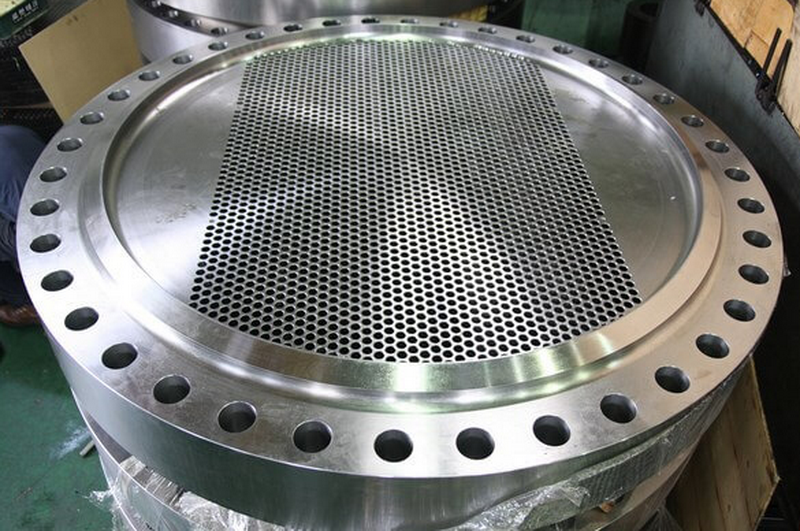

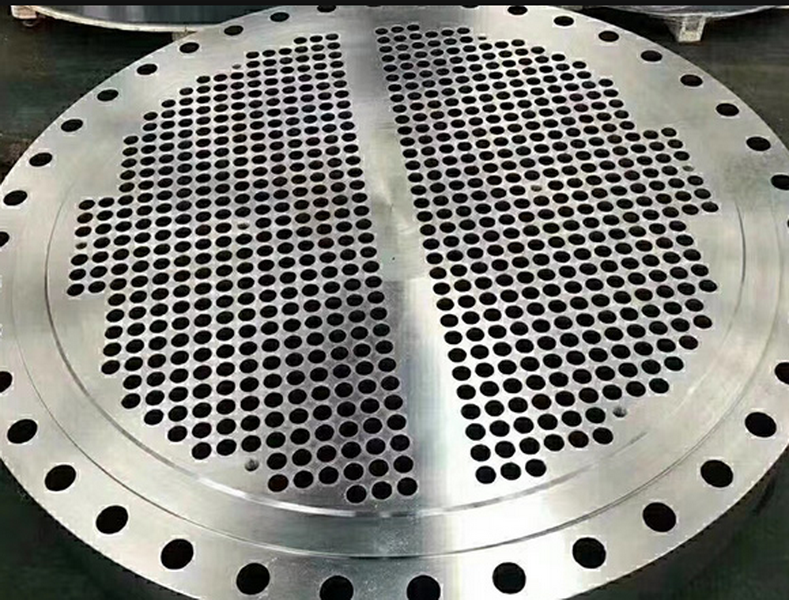

A stainless steel tube sheet is a flat, thick plate made primarily from stainless steel, designed with multiple holes drilled precisely to accommodate tubes. These tubes pass through the sheet and are either welded or mechanically expanded to form a strong, leak-proof joint. Tube sheets are integral parts of heat exchangers, boilers, condensers, and other equipment where fluids transfer heat through tubes.
The choice of stainless steel for tube sheets is due to its excellent corrosion resistance, mechanical strength, and durability under high temperature and pressure conditions. Tube sheets can vary in thickness and diameter depending on the application and fluid pressure requirements.
The first step in manufacturing a stainless steel tube sheet is selecting the appropriate raw material. Stainless steel tube sheets are typically made from low carbon stainless steel grades such as 304, 316, or other specialized alloys depending on the operating environment.
- The material must have excellent corrosion resistance and mechanical properties.
- Sometimes, tube sheets are made from carbon steel with a stainless steel cladding to combine strength and corrosion resistance.
Once the stainless steel material is selected, it is cut into the desired shape and size, usually a flat circular or rectangular plate.
- Cutting methods include plasma cutting, laser cutting, or precision machining.
- The thickness of the tube sheet can range from 5mm to over 300mm, depending on design specifications.

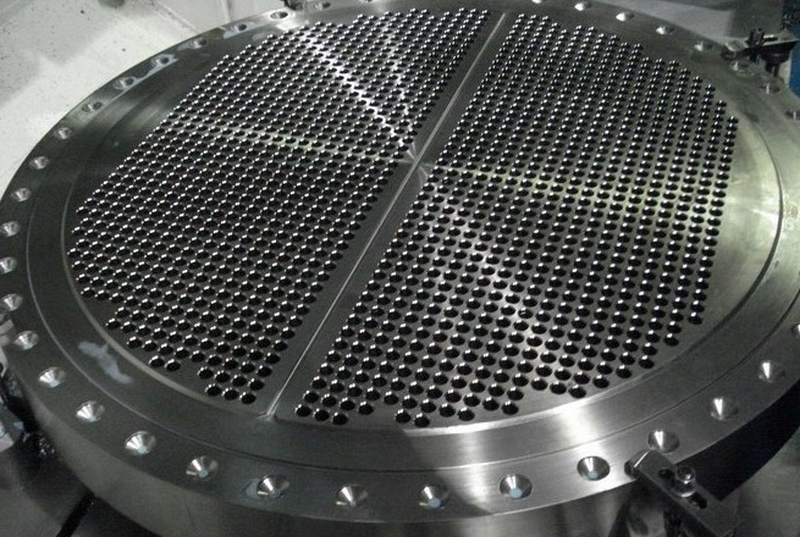

Drilling is one of the most critical steps in tube sheet manufacturing.
- Holes are drilled with high precision to match the size and pitch of the tubes that will be inserted.
- CNC drilling machines or milling machines are used to ensure accuracy and repeatability.
- The hole diameter and spacing must comply with engineering standards to maintain structural integrity and proper sealing.
After drilling, the holes often undergo expansion and finishing processes.
- Tube hole expansion slightly enlarges and smooths the holes to facilitate tube insertion.
- Deburring and chamfering remove sharp edges that could damage tubes during installation.
Tubes are inserted into the drilled holes and secured.
- Welding is commonly used to attach tubes to the tube sheet, creating a strong, leak-proof joint.
- TIG welding is often preferred for stainless steel due to its precision and clean finish.
- In some designs, mechanical expansion or rolling of tubes into the holes is used instead of welding.
Post-welding, the tube sheet undergoes surface treatments to enhance corrosion resistance and appearance.
- Pickling and passivation remove welding oxides and restore the stainless steel's protective chromium oxide layer.
- Surface finishing can include grinding, brushing, or polishing depending on the application.
Quality control is vital throughout the process.
- Dimensional inspections ensure hole placement and size accuracy.
- Non-destructive testing (NDT) such as dye penetrant or ultrasonic testing checks for weld integrity.
- Pressure testing may be conducted to verify the seal between tubes and the tube sheet.
Tube sheets are essential in heat exchangers, where they support tubes and separate fluids. The precision in manufacturing ensures efficient heat transfer and prevents leaks.
- The tube sheet must withstand thermal expansion and pressure differences.
- Stainless steel's corrosion resistance is crucial in harsh chemical environments.
The manufacturing of a stainless steel tube sheet is a meticulous process involving careful material selection, precision machining, accurate drilling, secure welding, and thorough finishing. Each step is crucial to ensure the tube sheet performs reliably in demanding industrial environments such as heat exchangers and boilers. Advances in CNC machining and welding technology have greatly improved the quality and efficiency of tube sheet production. Understanding this process helps engineers and manufacturers select and specify the right tube sheet for their applications, ensuring safety, durability, and optimal performance.
Stainless steel tube sheets are usually made from low carbon stainless steel grades such as 304, 316, or sometimes carbon steel with stainless steel cladding for enhanced corrosion resistance.
Holes are drilled using CNC drilling or milling machines that provide precise control over hole diameter, spacing, and alignment to meet strict engineering tolerances.
TIG welding is the most common method for welding tubes to stainless steel tube sheets due to its precision and clean welds. Mechanical expansion may also be used depending on design.
Surface treatments like pickling and passivation remove weld oxides and restore the protective chromium oxide layer on stainless steel, enhancing corrosion resistance.
Quality control includes dimensional inspections, non-destructive testing (dye penetrant, ultrasonic), and pressure testing to ensure weld integrity and proper sealing.
