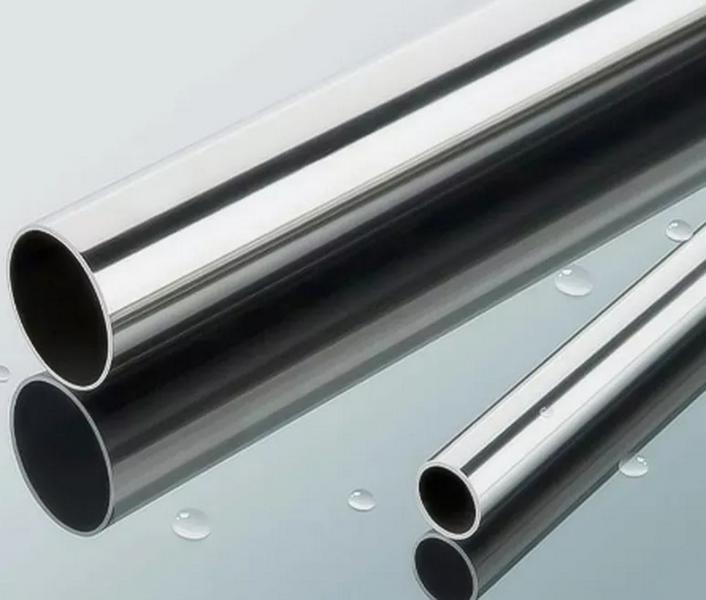

Stainless steel tubes are the backbone of numerous critical industries, from aerospace and automotive to medical devices and energy. Among the various fabrication techniques available, swaging stands out as a transformative process that not only shapes but also strengthens stainless steel tubes, especially surgical stainless steel tube. In this comprehensive guide, we'll explore the science and technology behind swaging, its impact on tube strength, and why it's the preferred method for high-precision applications.
Swaging is a cold-forming metalworking process that alters the diameter or shape of a tube without removing material or applying heat. Instead, it uses dies and high-pressure force to plastically deform the tube, compressing or expanding it into the desired profile. The result is a seamless, strong, and dimensionally precise component, ideal for demanding applications like surgical stainless steel tube in medical and aerospace industries.
- Choose the right tube: Stainless steel is preferred for its corrosion resistance and strength, especially for surgical stainless steel tube.
- Cut to length: Tubes are cut to precise lengths using specialized cutters.
- Deburr and clean: The ends are deburred and cleaned to ensure a smooth, defect-free surface for swaging.
- Select dies: Dies are chosen based on the desired final diameter and shape.
- Install dies: Dies are mounted in the swaging machine, which can be manual, hydraulic, or rotary.
- Insert tube: The tube is inserted into the swaging machine.
- Apply pressure: The dies compress or expand the tube, reshaping it to the required dimensions.
- Monitor progress: Operators use calipers or gauges to ensure dimensional accuracy throughout the process.
- Annealing (if needed): For certain stainless steel grades, annealing may be performed to relieve internal stresses and restore ductility.
- Finishing: Tubes may be polished or further machined for a smooth surface finish.
- Quality control: Rigorous inspections ensure each tube meets strict specifications for strength, size, and appearance.
- Dies rotate rapidly around the tube, hammering it into shape.
- Ideal for reducing diameter, forming tapers, or creating complex profiles.
- Dies apply repeated lateral pressure to compress the tube.
- Commonly used for diameter reduction and prepping ends for assembly.
- Used for reducing cross-sections or changing shapes (e.g., round to square).
- Suitable for both ends and mid-sections of tubes.
Swaging is a cold-working process, meaning it deforms the metal at room temperature. This mechanical deformation refines the grain structure of the stainless steel, increasing its strength and fatigue resistance. The improved microstructure is less prone to crack initiation and propagation, making it ideal for high-stress environments like surgical stainless steel tube in medical devices.
Unlike welding or brazing, swaging does not introduce heat, which can weaken the metal and reduce corrosion resistance. The absence of heat-affected zones preserves the inherent properties of stainless steel, ensuring maximum durability and lifespan.
Swaging machines can achieve extremely tight tolerances on both outside diameter and wall thickness. This precision is crucial for applications like surgical stainless steel tube, where even minor deviations can compromise performance.
The cold-forming action of swaging increases the yield and tensile strength of the tube. The resulting component can withstand higher internal pressures, mechanical loads, and repeated cycles of stress without failure.
Swaged connections are mechanically strong and leak-proof, making them ideal for high-pressure or vacuum applications. The process also enhances resistance to vibration fatigue, a key requirement for surgical stainless steel tube in medical and aerospace assemblies.
- Landing gear, hydraulic lines, and fuel systems require precise, strong, and lightweight tubes.
- Swaged surgical stainless steel tube is used for its reliability and tight tolerances.
- Surgical instruments, implants, and drug delivery systems depend on the dimensional accuracy and smooth finish of swaged tubes.
- Swaging ensures the highest standards of cleanliness and biocompatibility for surgical stainless steel tube.
- Fuel injection systems, brake lines, and power steering assemblies benefit from swaged tubes' strength and leak resistance.
- Oil and gas exploration, power generation, and renewable energy systems use swaged tubes for high-pressure and structural applications.
| Feature | Swaging (Stainless Steel Tube) | Welding/Fabrication | Machining | Pipe Flaring |
|---|---|---|---|---|
| Tolerance Precision | Very high | Variable | High (waste) | Moderate |
| Material Wastage | Minimal | None (joint weak) | High | Minimal |
| Strength Enhancement | Yes (cold working) | Can weaken | No | No |
| Surface Finish | Smooth | Requires finishing | Depends | Rough |
| Cost Efficiency | High (volume) | High labor | Low (small) | Moderate |
| Leak-Proof Connections | Yes | Requires sealing | No | No |
| Application Suitability | High-pressure, medical, etc. | Structural | Custom parts | HVAC, auto |
- Equipment and Expertise: High-quality swaging requires precision equipment and skilled operators.
- Material Limits: Very thick or hard stainless steel may need preheating or annealing to prevent cracking.
- Design Constraints: Complex shapes may require additional forming or machining.
- Quality Control: Rigorous inspection is necessary to maintain tight tolerances and consistent strength.
Swaging is a powerful, versatile, and cost-effective technique for improving the strength and performance of stainless steel tubes, particularly surgical stainless steel tube. By leveraging cold-forming technology, swaging refines the metal's grain structure, enhances dimensional precision, and produces robust, leak-proof connections essential for high-stakes industries. Whether you're manufacturing surgical instruments, aerospace components, or high-pressure hydraulic systems, swaged stainless steel tubes deliver unmatched reliability and longevity.
Swaging significantly enhances the strength and fatigue resistance of surgical stainless steel tube by refining its grain structure through cold working. This process also ensures tight dimensional tolerances and a smooth surface finish, which are critical for medical applications.
Swaging does not introduce heat, so it avoids heat-affected zones that can weaken the tube or reduce corrosion resistance. It also creates strong, leak-proof joints without the need for additional fittings or post-processing, making it superior for high-integrity applications.
While swaging excels at diameter reduction, tapering, and pointing, advanced machines and dies can also create complex profiles and transitions. However, extremely intricate shapes may require supplementary forming or machining steps.
Most grades of stainless steel, including those used for surgical stainless steel tube, can be swaged. However, very hard or thick-walled tubes may require annealing before or after swaging to prevent cracking and restore ductility.
Industries such as medical devices, aerospace, automotive, and energy benefit greatly from swaged surgical stainless steel tube due to its enhanced strength, precision, and reliability in critical applications.
