In the oil and gas industry, maintaining and improving wellbore efficiency is crucial for maximizing production and minimizing operational costs. Coiled tubing (CT) technology has emerged as a versatile and effective solution for a wide range of well intervention and drilling operations[2][8]. Among the various types of coiled tubing, stainless steel (SS) coiled tubing stands out due to its unique properties and capabilities. This article explores how SS coiled tubing enhances wellbore efficiency through its applications, material advantages, and operational benefits.
Coiled tubing refers to a long, continuous metal pipe, typically ranging from 1 to 3.25 inches in diameter, spooled on a large reel[2]. It is primarily used for interventions in oil and gas wells and, in some cases, as production tubing in depleted gas wells[2]. Unlike traditional jointed pipes, coiled tubing's continuous nature allows for seamless operations, reducing the need for connections and minimizing potential leak points[2][4].
Coiled tubing offers several advantages over traditional methods, including:
- Ability to pump chemicals: Coiled tubing can pump chemicals through the coil[2].
- Ability to push: It can be pushed into the hole rather than relying on gravity[2].
- Closed system: Pumping can be fairly self-contained, almost a closed system, since the tube is continuous instead of jointed pipe[2].
- Cost-effectiveness: Coiled tubing is cost-effective and versatile[8].
A typical coiled tubing system consists of several key components:
- Coiled Tubing Reel: Stores and deploys the coiled tubing string.
- Injector Head: Grips and pushes the coiled tubing into the wellbore.
- Control System: Manages the deployment and retrieval of the coiled tubing, as well as other operational parameters.
- Bottom Hole Assembly (BHA): The tool string at the bottom of the coil[2]. It can range from something as simple as a jetting nozzle, for jobs involving pumping chemicals or cement through the coil, to a larger string of logging tools, depending on the operations.

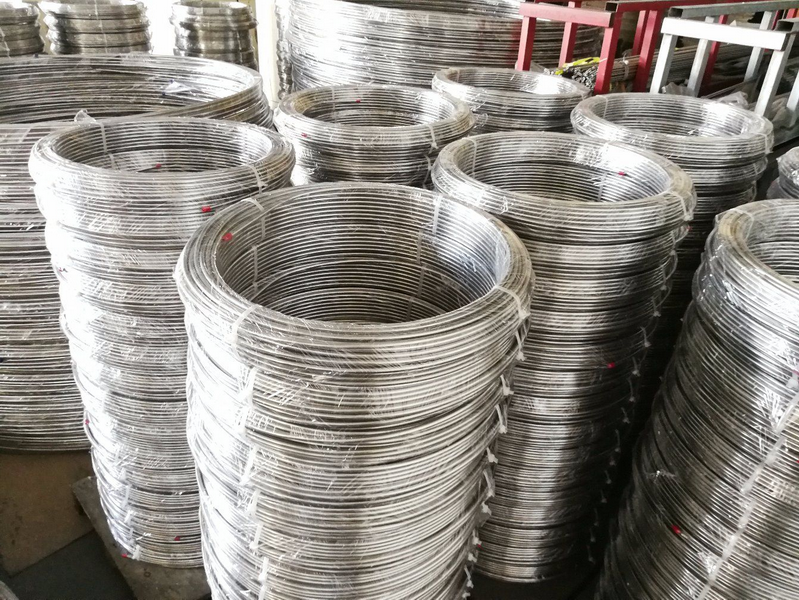

Stainless steel coiled tubing offers superior performance and longevity in challenging wellbore environments due to its distinctive qualities.
Because of its high chromium content, stainless steel is very resistant to corrosion[4]. This is essential in the oil and gas sector, where wellbores frequently contain corrosive substances like hydrogen sulfide, carbon dioxide, and brines. Stainless steel coiled tubing is less prone to corrosion-related failure than conventional steel alternatives, which lowers the possibility of downtime and maintenance expenses.
Stainless steel alloys, such as 304/304L and 316/316L, have high tensile and yield strengths[4]. These mechanical characteristics enable coiled tubing to endure high pressures and stresses during well operations. The tubing's structural integrity is preserved even in deep, high-pressure, high-temperature (HPHT) environments because it is resistant to deformation and mechanical failure.
Stainless steel can maintain its mechanical qualities and corrosion resistance at both high and low temperatures[4]. This makes it ideal for use in environments with extreme temperatures, such as those seen in deepwater wells or thermal recovery applications. Stainless steel coiled tubing can endure temperature extremes without losing its structural integrity or performance, in contrast to other materials that may weaken or become brittle.
Despite its strength, stainless steel can be made into coiled tubing that is flexible enough to navigate tight wellbore geometries. This makes it possible to carry out operations in horizontal, deviated, and complex wellbores without running the risk of buckling or permanent deformation. Furthermore, stainless steel coiled tubing is simple to cut, join, and manipulate in the field, which streamlines installation and maintenance procedures.
SS coiled tubing plays a crucial role in various wellbore operations, improving efficiency and productivity.
One of the most common applications of CT is the cleanout and removal of fill materials that restrict flow through tubing or casing[5]. SS coiled tubing is widely used for wellbore cleanout operations to remove debris, scale, and other obstructions that can impede production[1]. The coiled tubing is run into the wellbore with a jetting nozzle or other specialized tools to agitate and dislodge the deposits[1]. The debris is then circulated out of the wellbore, restoring full production capacity. The reverse jetting action along with a controlled pump rate and wiper trip speed can produce a solids transport action which cleans the hole completely[1].
Operators also employ coiled tubing to convey and place bridge plugs and mechanical, hydraulic or inflatable packers to establish zonal isolation[5]. SS coiled tubing can deploy bridge plugs and packers to isolate specific wellbore zones[5]. This is essential for water shutoff, selective stimulation, and preventing crossflow between different formations. By providing effective zonal isolation, SS coiled tubing helps optimize production and minimize water cut.
Coil tubing can perform almost any operation for oil well operations if used correctly[2]. SS coiled tubing is used to deliver fracturing fluids and proppant into the wellbore during hydraulic fracturing operations[8]. Its ability to withstand high pressures and temperatures ensures efficient and controlled fracturing, enhancing reservoir permeability and increasing production rates.
Well logging is typically per-formed with tools that store data in memory; however, some logging operations use an optional cable to provide surface power and readouts when running tools downhole on CT[5]. SS coiled tubing can deploy logging tools and perforating guns into the wellbore to evaluate formation properties and create pathways for fluid flow[3]. Its flexibility and reach allow for accurate data acquisition and precise perforating, optimizing well performance.
The rapid increase in rigless coiled tubing drilling seen over the past couple of years[3]. SS coiled tubing can be used for drilling applications, especially in situations where conventional drilling methods are not feasible or cost-effective[3]. Coiled tubing drilling offers advantages such as reduced rig time, minimal environmental impact, and the ability to drill in live wells.
The deployment of SS coiled tubing offers several operational advantages that enhance wellbore efficiency and reduce overall costs.
Continuous-length, seamless tubing is faster and cheaper to install than stick tubing[4]. SS coiled tubing eliminates the need for multiple connections and fittings, reducing installation time and costs[4]. The continuous length of the tubing minimizes potential leak points and ensures a more reliable system[4].
SS coiled tubing's resistance to corrosion and mechanical failure minimizes the risk of downtime due to equipment failure[4]. Its durability and reliability ensure continuous operation, maximizing production uptime and reducing maintenance costs.
With reduction or elimination of leak points, the potential for hazardous materials to escape from the system decreases[7]. The use of SS coiled tubing reduces the risk of leaks and environmental contamination[7]. Its high strength and corrosion resistance ensure safe and reliable operation, protecting personnel and the environment.
No matter what the application, the product advantages of long lengths of stainless coiled tubing still remain as constant as the performance they deliver[7]. SS coiled tubing improves the efficiency of wellbore operations by enabling precise and controlled delivery of fluids and tools[1]. Its flexibility and reach allow for access to challenging wellbore geometries, optimizing production and recovery.
Several factors can influence the efficiency of SS coiled tubing operations, and it is essential to consider these factors to optimize performance.
The deviation angle, fluid type, particle size, and nozzle type affect the hole cleaning efficiency[1]. The condition of the wellbore, including its geometry, fluid properties, and presence of obstructions, can impact the efficiency of SS coiled tubing operations[1]. It is essential to assess these conditions and select appropriate tools and techniques to overcome any challenges.
The choice of fluids used in SS coiled tubing operations can significantly affect performance[1]. It is essential to select fluids that are compatible with the wellbore environment and optimized for the specific application.
The type of tools used with SS coiled tubing can impact the efficiency of operations[1]. It is essential to select tools that are appropriate for the specific task and optimized for the wellbore conditions.
Proper training and experience are essential for ensuring the safe and efficient operation of SS coiled tubing equipment. Operators must be trained in the proper use of equipment, as well as in the recognition and mitigation of potential hazards.
To maximize wellbore efficiency with SS coiled tubing, it is essential to follow best practices in planning, execution, and maintenance.
Careful planning is essential for ensuring the success of SS coiled tubing operations[3]. This includes assessing wellbore conditions, selecting appropriate tools and fluids, and developing a detailed operational plan.
Proper execution of the operational plan is essential for maximizing wellbore efficiency[1]. This includes monitoring wellbore conditions, controlling pumping rates and pressures, and ensuring proper tool placement.
Regular maintenance is essential for ensuring the continued reliability and performance of SS coiled tubing equipment[4]. This includes inspecting tubing for wear and damage, lubricating moving parts, and replacing worn components.
In conclusion, stainless steel coiled tubing is a versatile and effective technology for enhancing wellbore efficiency in the oil and gas industry. Its unique material properties, diverse applications, and operational benefits make it an invaluable tool for optimizing production, reducing costs, and ensuring safe and reliable operations. By understanding the factors that affect the efficiency of SS coiled tubing operations and following best practices in planning, execution, and maintenance, operators can maximize the benefits of this technology and achieve significant improvements in wellbore performance.
Coiled tubing is a long, continuous metal pipe spooled on a reel, used for well interventions and drilling operations. It is deployed into the wellbore to perform tasks such as cleanouts, zonal isolation, hydraulic fracturing, and well logging. The continuous nature of the tubing allows for seamless operations and efficient delivery of fluids and tools.
Stainless steel coiled tubing offers superior corrosion resistance, high strength and durability, temperature resistance, and flexibility. These properties make it ideal for use in challenging wellbore environments, ensuring long-term reliability and minimizing downtime.
Coiled tubing is run into the wellbore with a jetting nozzle to agitate and dislodge debris, scale, and other obstructions. The debris is then circulated out of the wellbore, restoring full production capacity. The continuous length and flexibility of coiled tubing allow for access to challenging wellbore geometries, optimizing the cleanout process.
Coiled tubing can perform a wide range of wellbore operations, including wellbore cleanout, zonal isolation, hydraulic fracturing, well logging, perforating, and coiled tubing drilling. Its versatility makes it an essential tool for optimizing well performance and maximizing production.
When planning a coiled tubing operation, it is essential to consider wellbore conditions, fluid selection, tool selection, and operator training. Assessing these factors and developing a detailed operational plan can help ensure the success and efficiency of the operation.
