Stainless steel tube coil heat exchangers are widely used in various industrial applications due to their exceptional ability to enhance heat transfer efficiency. These devices are designed to transfer heat between two fluids without mixing them, making them crucial in processes such as heating, cooling, and energy recovery. The use of stainless steel in these heat exchangers offers numerous benefits, including high corrosion resistance, durability, and thermal efficiency.

Introduction to Stainless Steel Tube Coil Heat Exchangers

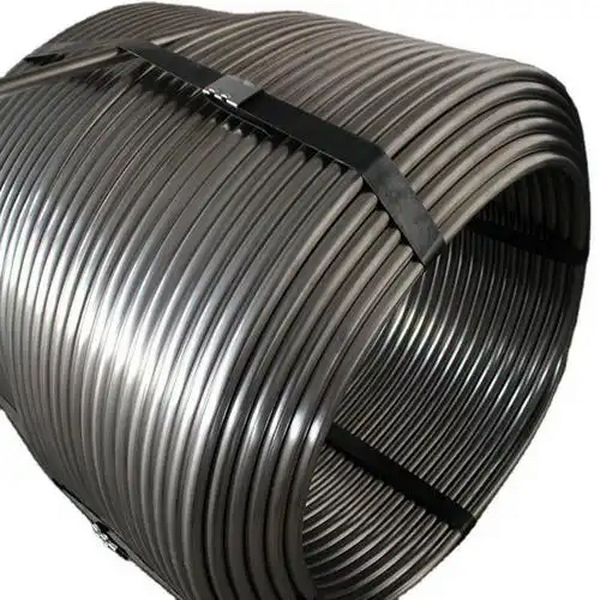

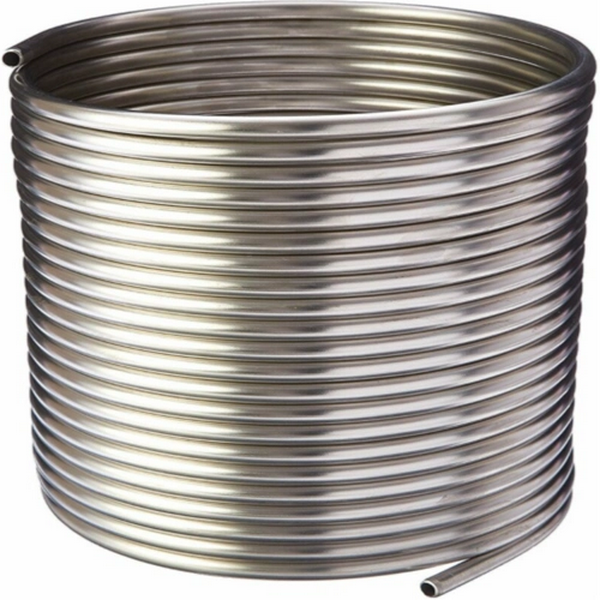

Stainless steel tube coil heat exchangers consist of a coil made from stainless steel tubing, which is bent into a desired shape to maximize the heat exchange area. This design allows for efficient heat transfer while minimizing space requirements. The coiled configuration facilitates turbulent flow, which increases the heat transfer rate, making these heat exchangers ideal for applications requiring rapid temperature changes.

Key Features of Stainless Steel Tube Coil Heat Exchangers

- Corrosion Resistance: Stainless steel's inherent resistance to corrosion ensures that the heat exchanger maintains its structural integrity even in environments with corrosive substances. This property is particularly beneficial in industries like chemical processing and food processing, where the risk of contamination is high.

- Durability and Strength: The robustness of stainless steel allows it to withstand high operating pressures and temperatures, making it suitable for demanding industrial applications. This durability reduces the need for frequent replacements, resulting in lower maintenance costs.

- Thermal Efficiency: Stainless steel offers good thermal conductivity, which is essential for efficient heat transfer. Although it may not conduct heat as well as materials like copper, its durability and resistance to extreme conditions make it a superior choice for many industrial applications.

- Hygiene and Cleanliness: In industries where maintaining hygiene is critical, such as food processing and pharmaceuticals, stainless steel's smooth surface is easy to clean and does not harbor bacteria or contaminants.

Applications of Stainless Steel Tube Coil Heat Exchangers

These heat exchangers are versatile and find applications across various sectors:

Chemical Processing

In chemical processing, where corrosive substances are handled, stainless steel tube coil heat exchangers ensure the safety and reliability of heat exchange processes. Their resistance to aggressive chemicals makes them a preferred choice in this sector.

Oil and Gas Industry

The oil and gas industry demands materials that can withstand harsh environments. Stainless steel tube coil heat exchangers provide the necessary strength and resistance to corrosion, making them ideal for heat exchangers used in this sector.

HVAC Systems

In heating, ventilation, and air conditioning (HVAC) systems, stainless steel tube coil heat exchangers are used for their ability to efficiently transfer heat without degrading over time. Their durability and performance contribute significantly to energy efficiency in HVAC applications.

Food Processing

In the food processing industry, hygiene and safety are paramount. Stainless steel's non-reactive surface ensures that food products remain uncontaminated during heat exchange, making it the ideal material for heat exchangers in this field.

Design and Manufacturing Process

The design and manufacturing process of stainless steel tube coil heat exchangers involve careful consideration of several factors to optimize heat transfer efficiency:

1. Coil Configuration: The coil is designed to provide a large surface area for heat exchange. The diameter of the coil and the spacing of the coils are carefully optimized to ensure efficient flow of the heat exchange medium.

2. Material Selection: Stainless steel is chosen for its corrosion resistance and durability. Different grades of stainless steel, such as 304 and 316, are selected based on the specific requirements of the application.

3. Manufacturing Techniques: Advanced manufacturing techniques, such as automatic pipe bending machines, are used to ensure precise coil formation and optimal surface area for heat exchange.

Enhancing Heat Transfer Efficiency

Several factors contribute to the enhanced heat transfer efficiency of stainless steel tube coil heat exchangers:

1. Turbulent Flow: The coiled design facilitates turbulent flow, which increases the heat transfer rate. This characteristic is particularly beneficial in processes requiring rapid temperature changes.

2. Large Surface Area: The coil configuration provides a large surface area for heat exchange, allowing for efficient heat transfer between fluids.

3. Optimized Flow Path: The design of the coil ensures an optimized flow path for the heat exchange medium, maximizing the efficiency of heat transfer.

Maintenance and Cleaning

Stainless steel tube coil heat exchangers are relatively easy to maintain and clean. The smooth surface of stainless steel minimizes the buildup of deposits, reducing the need for frequent cleaning. When cleaning is required, the coils can be easily removed, cleaned, and reinstalled.

Conclusion

Stainless steel tube coil heat exchangers are a vital component in various industrial applications due to their ability to enhance heat transfer efficiency. Their corrosion resistance, durability, and thermal efficiency make them a preferred choice for industries such as chemical processing, oil and gas, HVAC systems, and food processing. By understanding the design, applications, and maintenance considerations of these heat exchangers, industries can optimize their heat exchange systems, leading to improved efficiency and reduced long-term costs.

Frequently Asked Questions

1. What are the primary benefits of using stainless steel tube coil heat exchangers?

The primary benefits include high corrosion resistance, durability, thermal efficiency, and ease of maintenance. These properties make stainless steel tube coil heat exchangers suitable for demanding industrial applications.

2. How does the coiled design enhance heat transfer efficiency?

The coiled design facilitates turbulent flow, which increases the heat transfer rate. Additionally, it provides a large surface area for heat exchange, allowing for efficient heat transfer between fluids.

3. What industries commonly use stainless steel tube coil heat exchangers?

These heat exchangers are commonly used in chemical processing, oil and gas, HVAC systems, and food processing due to their corrosion resistance and durability.

4. How are stainless steel tube coil heat exchangers maintained and cleaned?

Maintenance and cleaning are relatively straightforward. The coils can be easily removed, cleaned, and reinstalled. The smooth surface of stainless steel minimizes the buildup of deposits, reducing the need for frequent cleaning.

5. What are the advantages of using different grades of stainless steel in heat exchangers?

Different grades of stainless steel offer varying levels of corrosion resistance. For example, 316 stainless steel provides enhanced resistance to chlorides and acids, making it suitable for applications where these substances are present.
