Installing 3/8 stainless steel cable clamps correctly is essential for ensuring the safety, durability, and reliability of cable assemblies in various applications, from marine environments to industrial rigging. This comprehensive guide will walk you through everything you need to know about securely installing 3/8 stainless steel cable clamps, including preparation, step-by-step installation, tips for success, and answers to frequently asked questions.

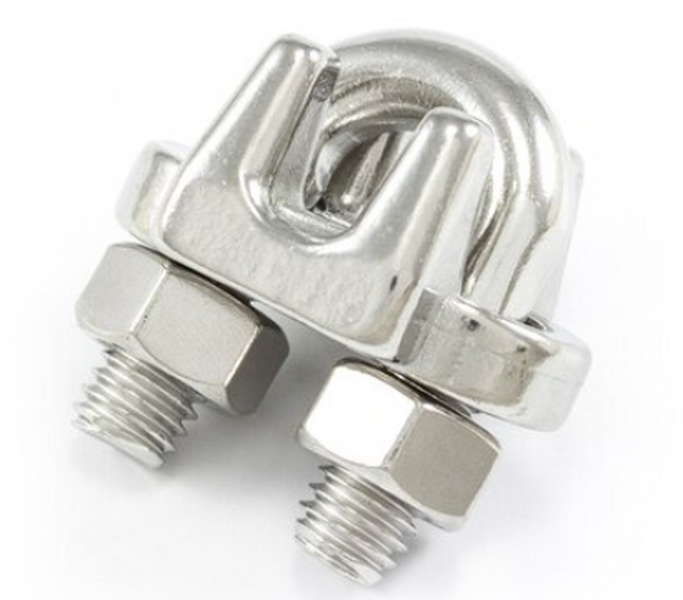

3/8 stainless steel cable clamps are devices used to secure wire ropes or cables by clamping the loose end after forming a loop or eye. They are made from corrosion-resistant stainless steel, making them ideal for harsh environments such as coastal areas, industrial sites, or outdoor installations.
- Material: Stainless steel for corrosion resistance and durability

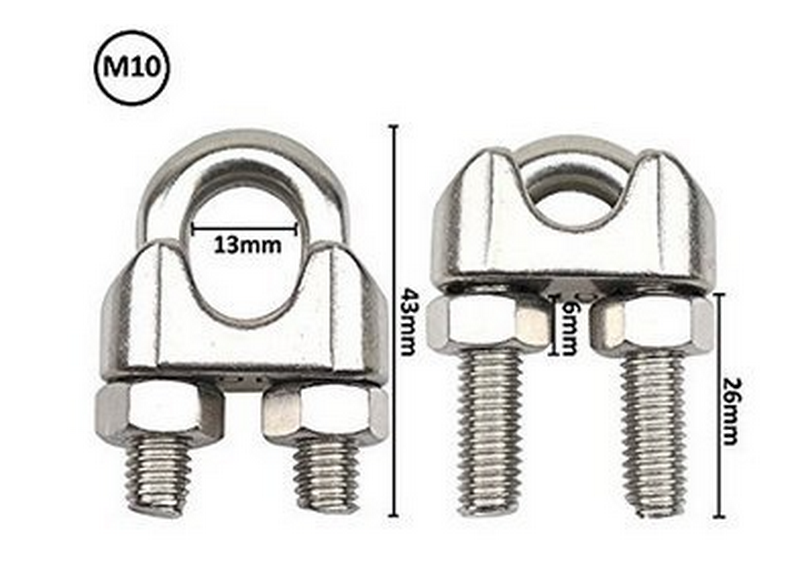

- Size: Designed for 3/8 inch diameter cables
- Types: Single-saddle, double-saddle, two-hole, and insulated clamps
- Applications: Used in rigging, guy lines, scaffolding, cable railing, and marine hardware
Before starting the installation, gather the following:
- 3/8 stainless steel cable clamps (appropriate quantity)
- Wrench or socket set
- Torque wrench (recommended for precise tightening)
- Cable cutter (if trimming cable ends)
- Measuring tape
- Safety gloves
- Wire rope thimble (optional, for eye protection)
- Marker or tape for cable marking
- Ensure the cable is clean, dry, and free of debris.
- If necessary, trim the cable end to make it straight and even for a better grip.
- Fold back the cable end to form the desired loop size.
- Insert a wire rope thimble inside the loop if extra protection and shape retention are needed.
- Place the first 3/8 stainless steel cable clamp one saddle length away from the end of the dead end (the loose cable end).
- The U-bolt part of the clamp must be on the dead end of the cable, and the saddle must be on the live end (the load-bearing side).
- This orientation is crucial and summarized by the phrase: “Never saddle a dead horse.”
- Hand-tighten the nuts evenly on both sides of the U-bolt.
- Use a torque wrench to tighten nuts to the manufacturer's recommended torque setting, ensuring even pressure.
- Avoid over-tightening to prevent cable damage.
- For secure fastening, use at least two clamps for a 3/8 cable; three or more may be required for critical applications.
- Place the second clamp as close as possible to the loop or thimble.
- Space any additional clamps evenly between the first two.
- Hand-tighten all nuts before final torque tightening.
- After all clamps are in place, tighten all nuts to the specified torque, alternating between nuts for even pressure.
- Remove any slack in the cable by pushing it toward the loop as you tighten.
- Inspect the clamps to ensure they are properly seated and aligned.
- Perform a load test if applicable to verify security.
- Always follow the “Never saddle a dead horse” rule: The saddle must never be on the dead end to avoid slippage.
- Use the correct number of clamps: For 3/8 inch cable, at least two clamps are needed; three or more for heavy loads.
- Use a torque wrench: Ensures nuts are tightened to the correct specification without over-tightening.
- Inspect regularly: Check clamps for loosening, corrosion, or wear, especially in harsh environments.
- Avoid installing clamps over cable coatings: This reduces clamp effectiveness and can cause slippage.
- Select high-quality stainless steel clamps: For corrosion resistance and longevity, especially in marine or outdoor applications.
| Mistake | Explanation | Solution |
|---|---|---|
| Wrong clamp type | Using clamps not suited for cable size or environment | Choose clamps designed for 3/8 stainless steel cable and your specific application |
| Incorrect clamp orientation | Placing the saddle on the dead end | Always install with U-bolt on dead end and saddle on live end |
| Over-tightening | Can damage cable or deform clamp | Use torque wrench and follow manufacturer specs |
| Insufficient clamps | Too few clamps reduce holding power | Use at least two clamps for 3/8 cable, more if needed |
| Neglecting maintenance | Loose or corroded clamps can fail | Regularly inspect and tighten clamps |
Installing 3/8 stainless steel cable clamps securely requires attention to detail, proper tools, and adherence to best practices. By following the correct installation steps—forming the loop, positioning clamps with the U-bolt on the dead end, tightening to proper torque, and using the right number of clamps—you ensure a safe, durable, and reliable cable assembly. Regular inspection and maintenance further enhance the longevity and safety of your installation. Whether for marine, industrial, or general rigging use, mastering the installation of 3/8 stainless steel cable clamps is vital for any professional or DIY enthusiast working with wire ropes.
For a 3/8 inch cable, at least two clamps are required for basic secure fastening. For critical or heavy-load applications, three or more clamps spaced evenly are recommended to distribute the load safely.
This phrase means the saddle of the cable clamp must always be placed on the live (load-bearing) end of the cable, and the U-bolt must be on the dead (loose) end. This prevents slippage and ensures maximum holding strength.
While stainless steel clamps are durable, reusing clamps is generally not recommended for critical applications because repeated tightening and loosening can weaken the clamp or damage the cable. Always inspect clamps thoroughly before reuse.
Torque specifications vary by manufacturer, but it is essential to use a torque wrench and follow the recommended torque values to avoid over-tightening or under-tightening. Consult the clamp's product documentation for exact figures.
Regular inspections are advised, especially in outdoor or harsh environments. Check clamps for corrosion, loosening, deformation, or wear at least every few months or as per the application's safety standards.
