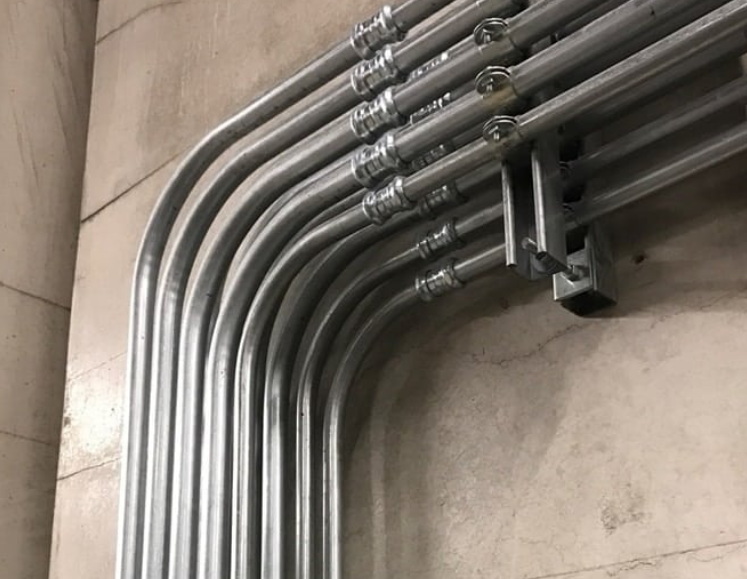

Bending thin wall stainless steel tubes is a common task in various industries, from automotive to aerospace, and even in DIY projects. However, achieving a clean bend without cracking or deforming the material can be challenging due to the inherent properties of stainless steel. This article will explore effective techniques and methods for bending thin wall stainless steel tubes without causing damage, ensuring that your projects maintain structural integrity and aesthetic appeal.
Stainless steel is known for its strength, corrosion resistance, and durability. However, these characteristics also make it difficult to bend without cracking or kinking. Thin wall stainless steel tubes are particularly susceptible to deformation during the bending process due to their reduced thickness. The main challenges include:
- Springback: Stainless steel tends to revert to its original shape after bending, which can lead to inaccuracies.
- Kinking: Insufficient support during the bending process can cause the tube to kink or collapse.
- Cracking: Excessive force or improper techniques can lead to cracks in the material.
To overcome these challenges, it is essential to use appropriate techniques and tools.
Mandrel bending is one of the most effective methods for bending thin wall stainless steel tubes. This technique involves inserting a mandrel—a support rod—inside the tube during the bending process. The mandrel helps maintain the tube's shape and prevents kinking or collapsing.
- Reduces the risk of wrinkling and wall thinning.
- Allows for tighter radius bends.
- Maintains structural integrity.
1. Preparation: Clean the tube thoroughly to remove any contaminants that could affect the bending process.
2. Insert Mandrel: Place a mandrel inside the tube.
3. Align Tube: Position the tube in a tube bender, ensuring it is aligned with the bend point.
4. Apply Pressure: Gradually apply pressure using the bender until you achieve the desired angle.
5. Inspect Bend: After bending, check for any signs of deformation or cracks.
Heat induction bending involves heating a section of the tubing before applying force to bend it. The heat makes the stainless steel more pliable, reducing the risk of cracks and allowing for more substantial bends.
- Reduces brittleness during bending.
- Allows for larger radius bends without damage.
- Effective for heavy-wall tubes as well.
1. Heat Preparation: Use an induction heater to evenly heat the area of the tube where the bend will occur.
2. Bend Tube: Once heated, place the tube in a bender and apply pressure gradually.
3. Cooling Down: Allow the tube to cool slowly after achieving the desired bend angle.
Filling thin wall stainless steel tubes with sand before bending can provide internal support and prevent kinking. This method is particularly useful for DIY enthusiasts who may not have access to specialized tools.
1. Seal One End: Cap one end of the tube securely.
2. Fill with Sand: Pour dry sand into the tube until it is full, then seal the other end.
3. Bend Tube: Use a manual or hydraulic bender to apply pressure gradually until you achieve your desired angle.
4. Remove Sand: After bending, carefully remove the sand from inside the tube.
Compression bending involves using a die that compresses the tubing around a stationary bend die. This method is suitable for symmetrical workpieces and can produce clean bends without excessive deformation.
1. Setup Machine: Position your tube in a compression bender with appropriate dies.
2. Clamp Tube: Securely clamp the tube behind its rear tangent point.
3. Apply Compression Force: Gradually apply force through the compression die until you reach your desired bend angle.
To ensure successful bending of thin wall stainless steel tubes without cracking, consider these best practices:
- Choose Appropriate Tools: Use high-quality benders designed specifically for stainless steel tubing.
- Lubricate Properly: Apply lubricants on both the tubing and tooling surfaces to reduce friction during bending.
- Gradual Pressure Application: Always apply pressure gradually rather than abruptly to avoid stressing the material.
- Monitor Temperature (for Heat Bending): Ensure that you do not overheat or underheat sections of tubing when using heat induction methods.
- Inspect After Bending: Always inspect your bends for any signs of deformation or cracks before proceeding with further processing or installation.
Bending thin wall stainless steel tubes without cracking requires careful planning, appropriate techniques, and quality tools. By employing methods such as mandrel bending, heat induction bending, sand filling, and compression bending while adhering to best practices, you can achieve precise bends that maintain both structural integrity and aesthetic quality.
Mandrel bending involves inserting a support rod (mandrel) inside a tube during bending to prevent kinking and maintain shape.
Heat induction bending uses controlled heating to make stainless steel more pliable before applying force to bend it.
While sand filling is effective for many bends, it may not be suitable for very tight radius bends where more precise control is needed.
If cracks are present after bending, it's essential to discard that piece as it may compromise structural integrity.
The choice depends on factors like required bend radius, wall thickness, available tools, and project specifications.
