When it comes to purchasing 316 seamless tubing, ensuring high quality is crucial for the success and safety of your project. This comprehensive guide will walk you through the essential steps and considerations to help you make an informed decision and secure top-notch 316 seamless tubing.

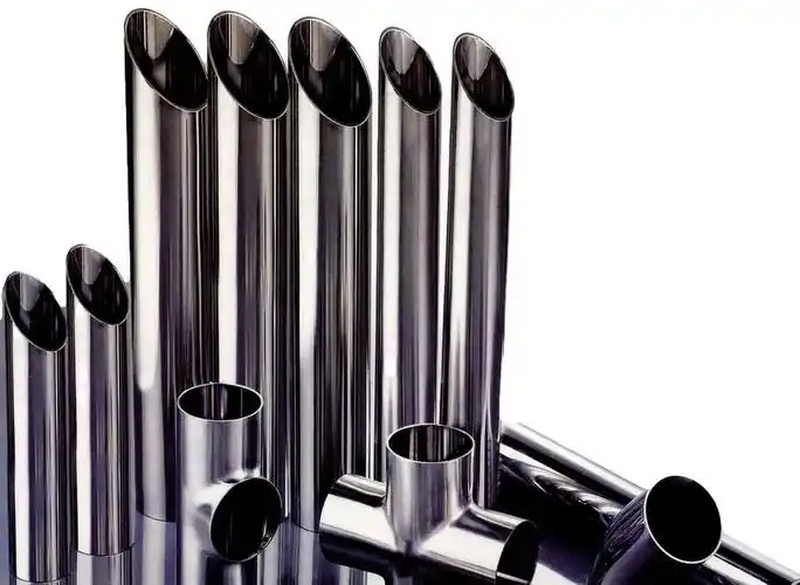

316 seamless tubing is a type of stainless steel tubing known for its excellent corrosion resistance and durability. It is widely used in various industries, including chemical processing, marine applications, and food processing, due to its superior properties.
- Corrosion Resistance: 316 stainless steel contains molybdenum, which enhances its resistance to pitting and crevice corrosion, especially in chloride-rich environments.
- High Strength: The seamless construction provides superior strength and pressure resistance compared to welded tubing.
- Temperature Resistance: 316 stainless steel maintains its properties across a wide range of temperatures, from cryogenic to high heat.
- Hygienic Properties: The smooth surface of seamless tubing makes it ideal for applications requiring strict cleanliness standards.
Ensure that the tubing meets the standard chemical composition for 316 stainless steel. The key elements to look for are:
- Carbon: 0.08% max (0.03% max for 316L)
- Chromium: 16-18%
- Nickel: 10-14%
- Molybdenum: 2-3%
- Silicon: 1% max
- Manganese: 2% max
- Phosphorus: 0.045% max
- Sulfur: 0.03% max
High-quality 316 seamless tubing is typically produced through a process of hot extrusion followed by cold drawing. This process ensures uniform wall thickness and superior mechanical properties.
Verify that the tubing meets the required dimensional tolerances for your application. Key dimensions to check include:
- Outside Diameter (OD)
- Inside Diameter (ID)
- Wall Thickness
- Straightness
- Ovality
The surface finish of 316 seamless tubing can significantly impact its performance and corrosion resistance. Common surface finishes include:
- Mill Finish: As-produced finish without additional processing
- Bright Annealed: Smooth, reflective surface achieved through heat treatment in a controlled atmosphere
- Pickled and Passivated: Chemically treated surface for enhanced corrosion resistance
Verify that the tubing meets the required mechanical properties for your application:
- Tensile Strength: Typically 75 ksi (515 MPa) minimum
- Yield Strength: 30 ksi (205 MPa) minimum
- Elongation: 35% minimum (in 2 inches)
- Hardness: 95 HRB maximum
Ensure that the tubing complies with relevant industry standards and certifications:
- ASTM A269/A269M: Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
- ASTM A213/A213M: Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
- ASME SA-269: Seamless and Welded Austenitic Stainless Steel Tubing for General Service
- ISO 9001: Quality Management System Certification
Request material test reports (MTRs) or certificates of conformance from the supplier. These documents should provide:
- Chemical composition analysis
- Mechanical property test results
- Heat treatment details
- Dimensional inspection results
Various NDT methods can be employed to verify the integrity of the tubing:
- Ultrasonic Testing (UT): Detects internal defects and measures wall thickness
- Eddy Current Testing (ECT): Identifies surface and near-surface defects
- Hydrostatic Testing: Verifies pressure resistance and leak-tightness
Perform a thorough visual inspection of the tubing to check for:
- Surface defects (scratches, dents, pits)
- Straightness
- End condition
- Cleanliness
Use precision measuring tools to verify key dimensions:
- Micrometers for OD and wall thickness
- Bore gauges for ID
- Straightness gauges
For critical applications, consider performing corrosion tests:
- Salt Spray Test (ASTM B117)
- Pitting Corrosion Test (ASTM G48)
- Intergranular Corrosion Test (ASTM A262)
Selecting a reputable supplier is crucial for ensuring the quality of your 316 seamless tubing. Consider the following factors:
Look for suppliers with a proven track record in producing high-quality 316 seamless tubing. Research their history, customer reviews, and industry reputation.
Verify that the supplier has a robust quality management system in place, preferably ISO 9001 certified.
Ensure the supplier has the necessary equipment and expertise to produce 316 seamless tubing to your specifications.
Choose a supplier that offers comprehensive technical support, including material selection advice and application assistance.
Opt for suppliers that maintain full traceability of their products, from raw material to finished tubing.
Proper handling and storage are essential for maintaining the quality of 316 seamless tubing:
1. Store in a clean, dry environment to prevent contamination and corrosion.
2. Use appropriate packaging materials to protect the tubing during transport and storage.
3. Handle with care to avoid surface damage or deformation.
4. Implement proper inventory management to ensure first-in, first-out (FIFO) usage.
5. Clean and passivate the tubing before use if it has been stored for an extended period.
316 seamless tubing finds use in a wide range of industries and applications:
1. Chemical Processing: Heat exchangers, process piping
2. Pharmaceutical: Clean steam systems, product transfer lines
3. Food and Beverage: Processing equipment, transfer lines
4. Marine: Offshore platforms, shipbuilding
5. Oil and Gas: Instrumentation lines, hydraulic systems
6. Aerospace: Hydraulic and pneumatic systems
7. Nuclear: Reactor components, waste processing
The 316 seamless tubing industry continues to evolve, with several trends shaping its future:
1. Advanced Manufacturing Techniques: Implementation of Industry 4.0 technologies for improved quality control and efficiency.
2. Sustainable Production: Focus on reducing environmental impact through energy-efficient processes and recycling initiatives.
3. Enhanced Corrosion Resistance: Development of new alloy compositions and surface treatments for improved performance in aggressive environments.
4. Miniaturization: Increasing demand for smaller diameter tubing in medical and electronic applications.
5. Customization: Growing trend towards tailored solutions to meet specific application requirements.
Ensuring the quality of 316 seamless tubing requires a comprehensive approach that encompasses material selection, manufacturing processes, testing, and supplier evaluation. By following the guidelines outlined in this article, you can confidently source high-quality 316 seamless tubing that meets your specific application requirements. Remember that investing time and effort in quality assurance at the procurement stage can lead to significant cost savings and improved performance in the long run.
The main difference between 316 and 316L seamless tubing lies in their carbon content. 316 stainless steel has a maximum carbon content of 0.08%, while 316L (low carbon) has a maximum of 0.03%. This lower carbon content in 316L improves its resistance to sensitization and intergranular corrosion, especially in welded applications. Both grades offer excellent corrosion resistance, but 316L is often preferred for applications involving welding or exposure to highly corrosive environments.
Determining the appropriate wall thickness for 316 seamless tubing depends on several factors:
- Operating pressure
- Temperature
- Corrosion allowance
- Mechanical stress
- Safety factors
To calculate the required wall thickness, you can use industry-standard formulas such as those provided in ASME B31.3 for process piping. It's recommended to consult with a qualified engineer or the tubing manufacturer to ensure the selected wall thickness meets all safety and performance requirements for your specific application.
Seamless tubing offers several advantages over welded tubing:
- Higher pressure ratings due to uniform wall thickness and absence of weld seams
- Better fatigue resistance, especially in cyclic loading applications
- Improved corrosion resistance without weld zones that can be susceptible to localized corrosion
- Smoother inner surface, which is beneficial for flow characteristics and cleanability
- Greater flexibility in cold-working and bending operations
However, welded tubing may be more cost-effective for larger diameters and can be produced with tighter dimensional tolerances in some cases. The choice between seamless and welded tubing ultimately depends on the specific application requirements.
The frequency of inspection and maintenance for 316 seamless tubing in corrosive environments depends on several factors:
- Severity of the corrosive environment
- Operating conditions (temperature, pressure, flow rates)
- Criticality of the application
- Historical performance data
As a general guideline, initial inspections should be conducted more frequently, such as quarterly or semi-annually, to establish a baseline for corrosion rates. Based on these results, you can develop a tailored inspection and maintenance schedule. In highly corrosive environments, online monitoring systems may be employed for continuous assessment. Always follow industry standards and regulatory requirements specific to your application and consult with corrosion experts to develop an appropriate inspection and maintenance program.
Yes, 316 seamless tubing can be used in cryogenic applications. The austenitic structure of 316 stainless steel maintains excellent toughness and ductility at very low temperatures, making it suitable for use in cryogenic systems. However, there are some considerations when using 316 seamless tubing in cryogenic applications:
- Thermal contraction: Account for dimensional changes due to extreme temperature differences
- Embrittlement: While 316 stainless steel resists embrittlement, proper material selection and heat treatment are crucial for optimal performance
- Thermal cycling: Consider fatigue effects due to repeated temperature changes
- Sealing: Use appropriate sealing materials and methods compatible with cryogenic temperatures
For critical cryogenic applications, it's recommended to use 316L grade to minimize the risk of carbide precipitation at grain boundaries. Always consult with materials experts and follow relevant standards (such as ASME B31.3 for cryogenic piping) when designing systems for cryogenic use.
