Choosing the right stainless steel tube diameter is a critical decision that impacts the performance, durability, and safety of your project. Whether you are working on industrial piping, structural frameworks, or decorative applications, understanding the dimensions and specifications of stainless steel tubes is essential. This comprehensive guide will walk you through the key factors to consider, including the importance of the stainless steel tube diameter chart, how to interpret it, and practical tips for selecting the perfect tube diameter for your needs.
Before diving into the selection process, it is important to understand the basic dimensions of stainless steel tubes:

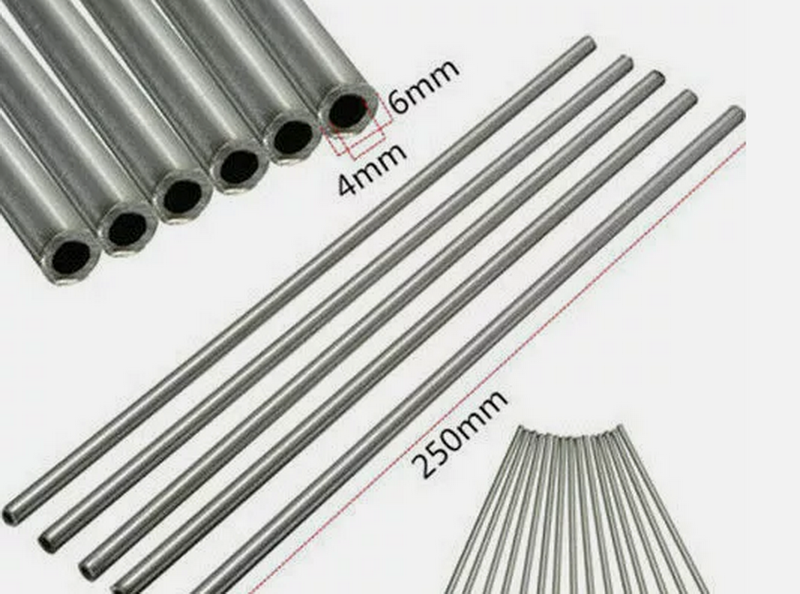

- Outside Diameter (OD): The total diameter measured from the outer edges of the tube. This is crucial for fitting and compatibility with other components.
- Inside Diameter (ID): The diameter of the hollow space inside the tube, which determines flow capacity for fluids or gases.
- Wall Thickness: The thickness of the tube's wall, which affects strength, weight, and pressure resistance.
These three measurements collectively define the tube's size and suitability for specific applications. The stainless steel tube diameter chart is a valuable tool that lists these dimensions in standardized formats, helping you compare and select the right tube size.
The diameter of a stainless steel tube influences several critical factors:
- Structural Strength: Larger diameters with appropriate wall thickness provide greater load-bearing capacity.
- Flow Rate: For fluid transport, the inside diameter determines how much fluid can pass through.
- Compatibility: The outside diameter must match fittings, connectors, and other system components.
- Weight and Cost: Larger diameters and thicker walls increase material usage, weight, and cost.
Selecting the wrong diameter can lead to system failure, inefficient performance, or unnecessary expenses.
A stainless steel tube diameter chart typically includes columns for outside diameter, inside diameter, wall thickness, and sometimes weight per unit length. Here's how to use it effectively:
1. Identify Your Application Requirements: Determine the load, pressure, flow rate, and space constraints.
2. Check Standard Sizes: Refer to the chart to find tubes that meet your dimensional needs.
3. Consider Wall Thickness: Choose a wall thickness that balances strength and weight.
4. Verify Compatibility: Ensure the outside diameter fits with your existing system components.
5. Review Material Grade: Different stainless steel grades (e.g., 304, 316) offer varying corrosion resistance and strength.
Here is a sample excerpt from a typical stainless steel tube diameter chart:
| Outside Diameter (mm) | Inside Diameter (mm) | Wall Thickness (mm) | Typical Applications |
|---|---|---|---|
| 6 | 4.5 | 0.75 | Medical devices, precision instruments |
| 25 | 22 | 1.5 | Structural supports, fluid transport |
| 50 | 45 | 2.5 | Industrial piping, machinery frames |
| 100 | 90 | 5 | Heavy-duty piping, chemical plants |
The intended use of the tube heavily influences the diameter choice. For example, structural applications require tubes with larger diameters and thicker walls to withstand mechanical stresses, while fluid transport systems prioritize inside diameter for flow capacity.
High-pressure systems demand tubes with thicker walls and possibly smaller inside diameters to maintain strength. Temperature extremes also affect material performance, so selecting the right diameter and grade is essential.
In tight spaces, the outside diameter must be small enough to fit without compromising functionality. This often requires balancing wall thickness and diameter.
Different stainless steel grades offer varying corrosion resistance. For example, 316 stainless steel is preferred in marine environments. The diameter choice should align with the grade to ensure longevity.
Larger diameters and thicker walls increase material costs and weight. Optimizing diameter to meet but not exceed requirements saves money and eases handling.

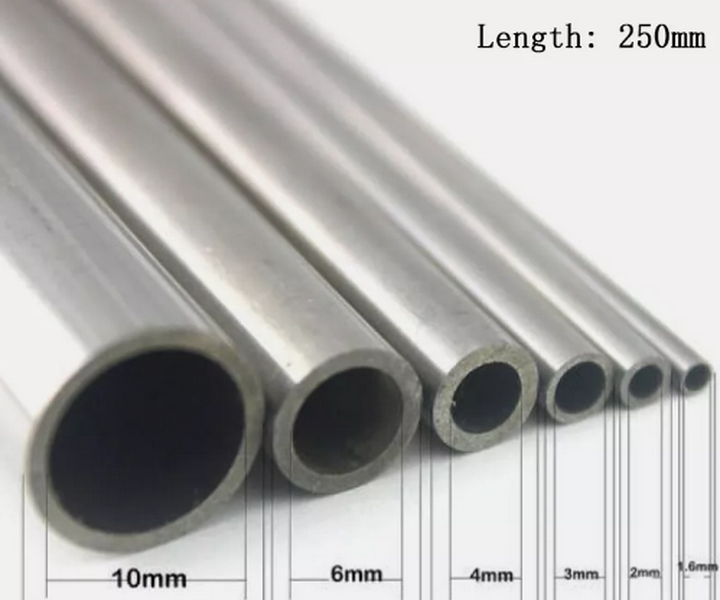

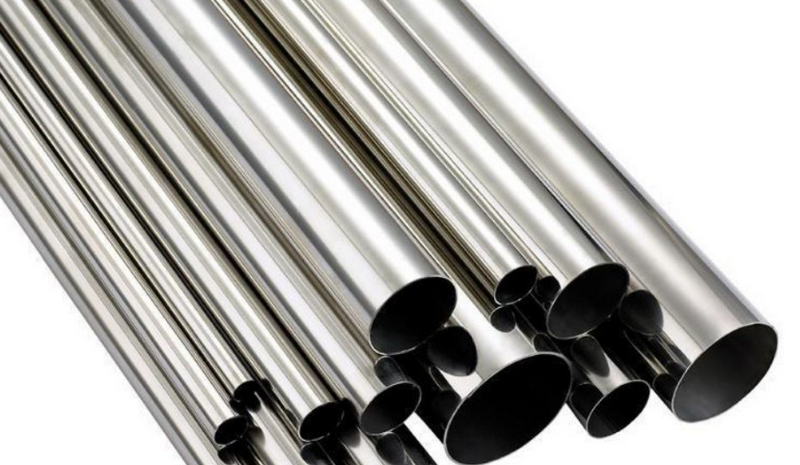

Stainless steel tubes come in a wide range of sizes. Here are some common categories:
| Size Category | Typical Outside Diameter (mm) | Wall Thickness (mm) | Common Uses |
|---|---|---|---|
| Small Diameter | 6 - 12 | 0.5 - 1.5 | Medical, laboratory, instrumentation |
| Medium Diameter | 25 - 50 | 1.5 - 3 | Structural supports, fluid systems |
| Large Diameter | 76 - 150 | 3 - 10 | Heavy-duty piping, industrial frames |
- Use precise tools like calipers and micrometers for measurement.
- Always double-check measurements against the stainless steel tube diameter chart.
- Consider manufacturing tolerances and standards such as ASTM and ISO.
- Consult with suppliers for custom sizes if standard dimensions do not fit your needs.
- Factor in the finish and surface treatment, especially for decorative or hygienic applications.
When selecting stainless steel tubes, ensure they comply with relevant industry standards such as ASTM A213, ASTM A269, or ISO 1127. These standards guarantee consistent dimensions, mechanical properties, and chemical composition, which are critical for safety and performance.
The surface finish of stainless steel tubes can affect their effective diameter, especially in precision applications. Polished or electropolished tubes may have slightly reduced inside diameters due to surface treatments. Account for this when selecting tube sizes for tight tolerance systems.
Stainless steel expands and contracts with temperature changes. In high-temperature applications, consider the thermal expansion coefficient to ensure the tube diameter remains within acceptable limits during operation.
The method of joining tubes—welding, flanging, or using mechanical fittings—can influence diameter selection. For example, welded joints may require specific outside diameters for proper fit-up, while flanged connections need precise OD matching.
- Consult with Engineers and Suppliers: Collaborate with professionals who can provide insights based on your specific application.
- Prototype and Test: When possible, test tubes of different diameters in real-world conditions to validate your choice.
- Consider Future Expansion: If your system may require upgrades, select a tube diameter that can accommodate increased capacity.
- Use Software Tools: Many manufacturers offer online calculators and design software to help select optimal tube sizes.
- Document Your Selection: Keep detailed records of your diameter choice rationale for future reference and quality control.
Selecting the right stainless steel tube diameter is a foundational step in ensuring the success of your project. By understanding the key dimensions—outside diameter, inside diameter, and wall thickness—and utilizing a comprehensive stainless steel tube diameter chart, you can make informed decisions that balance strength, functionality, and cost. Always consider your application's specific requirements, including load, pressure, space, and corrosion resistance, to choose the optimal tube size. With the right diameter and grade, stainless steel tubes provide unmatched durability, versatility, and performance across a wide range of industries.
The outside diameter (OD) is the total width of the tube measured from the outer edges, while the inside diameter (ID) is the hollow space inside the tube. OD is important for fitting and compatibility, whereas ID determines flow capacity for fluids or gases.
Wall thickness impacts the tube's strength, durability, and pressure resistance. Thicker walls provide greater structural integrity but increase weight and cost. Thinner walls are lighter and more flexible but less strong.
Reliable charts are available from manufacturers, industry standards organizations like ASTM and ISO, and metal suppliers. These charts list standard sizes, wall thicknesses, and tolerances.
Yes, many manufacturers offer custom fabrication services to produce tubes with specific outside diameters, inside diameters, and wall thicknesses to meet unique project requirements.
Grades like 304 and 316 stainless steel are commonly used for their excellent corrosion resistance. Grade 316 is preferred in marine and chemical environments due to its higher resistance to chlorides.
