Coiled tubing (CT) technology has transformed the oil and gas industry by providing a versatile, efficient, and cost-effective method for well interventions, drilling, and completion operations. This article explores the principles of coiled tubing, its applications, benefits, challenges, and the technology that underpins its operation.
Coiled tubing refers to a continuous length of small-diameter steel pipe that is wound on a large spool. Unlike traditional straight pipe, coiled tubing can be deployed into wells without the need to make connections between joints. This continuous structure allows for greater flexibility and efficiency in various operations.
- Diameter: Coiled tubing typically ranges from 0.75 inches to 4.5 inches in diameter, with 2 inches being the most common size.
- Length: It can be produced in lengths exceeding 30,000 feet (9,000 meters), allowing it to reach significant depths.
- Material: Made from high-strength steel alloys, coiled tubing is designed to withstand the harsh conditions found in oil and gas wells.

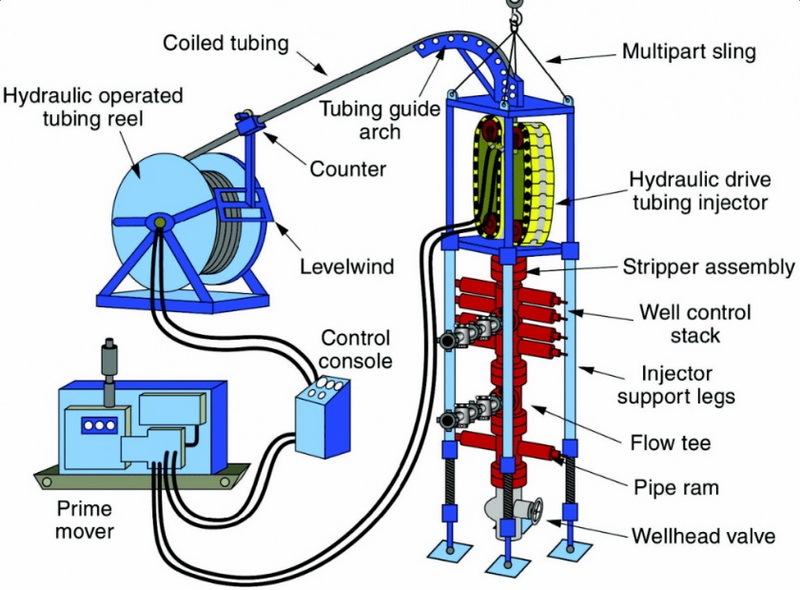

The operation of coiled tubing involves several key components and processes:
1. Coiled Tubing Unit (CTU): The CTU is the central piece of equipment that includes a reel for storing the coiled tubing, an injector head for deploying the tubing into the well, and a control cabin for monitoring operations.
2. Deployment Process:
- The coiled tubing is spooled off the reel through a gooseneck that directs it downward into the well.
- The injector head straightens the tubing before it enters the borehole.
- A stripper assembly creates a seal around the tubing as it moves in and out of live wells, ensuring pressure control.
3. Fluid Circulation: Unlike traditional wireline operations, coiled tubing allows for continuous fluid circulation while working in a well. This capability is crucial for various applications such as acidizing and fracturing.
4. Control Systems: Operators use hydraulic systems to control the movement of the coiled tubing and monitor well conditions from the CTU control cabin.
To understand how coiled tubing works effectively, it's essential to look at its main components:
- Coiled Tubing Reel: This robust spooling system stores and deploys the coiled tubing. It features hydraulic or pneumatic mechanisms that allow controlled unwinding and winding of the tubing.
- Injector Head: This component serves as the entry point for the coiled tubing into the wellbore. It consists of gripping mechanisms and rollers designed to guide the tubing smoothly into the well while applying necessary tension.
- Blowout Preventer (BOP): Installed at the wellhead, BOPs are critical safety devices that prevent uncontrolled release of fluids during intervention operations. They seal the wellbore in emergencies.
- Control Console: This system allows operators to monitor real-time data on downhole conditions such as pressure and temperature while controlling various equipment functions remotely.
Coiled tubing technology is used for a variety of applications in oil and gas operations:
- Well Intervention: CT is employed for maintenance tasks such as cleaning out sand or solids from wellbores, which improves production efficiency.
- Stimulation Operations: Techniques like acidizing use coiled tubing to inject acids or chemicals into reservoirs to enhance hydrocarbon flow.
- Drilling Operations: Coiled tubing drilling (CTD) allows for efficient drilling of shallow wells or horizontal sections without traditional pipe connections.
- Fishing Operations: CT can retrieve lost tools or equipment from wells due to its flexibility and reach.
- Casing Patches: It is also used to perform casing repairs by deploying patches through existing well structures.
Beyond these primary uses, coiled tubing has been adapted for several specialized tasks:
- Hydrate Removal: Coiled tubing is frequently employed to remove hydrates—solid ice-like compounds that can obstruct pipelines or wellbores—ensuring smooth fluid flow.
- Underbalanced Drilling (UBD): In UBD operations, coiled tubing helps maintain lower pressure within the wellbore than formation pressure, minimizing damage during drilling activities.
- Logging Operations: Coiled tubing can carry logging tools downhole to gather data on well conditions without interrupting production flow.
The use of coiled tubing offers several advantages over traditional methods:
- Speed and Efficiency: Coiled tubing can be deployed quickly, often reducing rig-up time significantly compared to conventional drilling rigs.
- Live Well Operations: CT allows work on live wells without needing to kill them, minimizing production downtime and preserving reservoir integrity.
- Reduced Environmental Impact: The smaller footprint of coiled tubing operations means less environmental disruption compared to traditional methods.
- Cost Savings: By reducing rig time and enabling continuous circulation, coiled tubing can lead to significant cost reductions in well interventions.
Coiled tubing's adaptability makes it suitable for various operations such as logging, stimulation, cleanouts, and even production enhancement. Its flexible nature allows it to navigate complex wellbore configurations efficiently[1].
The continuous length of coiled tubing minimizes connection failures' risk during operations. Real-time monitoring capabilities allow operators immediate responses to changing downhole conditions[1][7].
Despite its advantages, coiled tubing also has limitations:
- Mechanical Limitations: The flexibility of coiled tubing can lead to buckling or other mechanical failures if not properly managed[1].
- Depth Limitations: While coiled tubing can reach significant depths, there are still operational limits based on equipment used and well conditions[2].
- Cost Considerations: Initial setup costs for coiling units can be high, which may deter some operators from using this technology extensively[4].
As technology continues to advance, so does the potential for improvements in coiled tubing applications. Innovations may include:
- Enhanced Materials: Development of stronger yet lighter materials could improve performance while reducing costs associated with transportation and deployment.
- Smart Technology Integration: Incorporating advanced sensors and data analytics could enhance real-time monitoring capabilities further, allowing operators to make informed decisions quickly during operations[7].
- Automation Improvements: Automating aspects of deployment could reduce human error and increase safety during operations[6][8].
Coiled tubing technology represents a significant advancement in oil and gas operations. Its ability to provide efficient solutions for well interventions while minimizing downtime makes it an invaluable tool in modern drilling practices. As technology continues to evolve, we can expect further innovations that will enhance the capabilities and applications of coiled tubing in the industry.
The primary advantage of coiled tubing is its ability to perform live well interventions without shutting down production. This minimizes downtime and preserves reservoir integrity while allowing for continuous fluid circulation during operations.
Coiled tubing can reach depths exceeding 30,000 feet (9,000 meters), depending on specific equipment used and well conditions[3].
Coiled tubing is typically made from high-strength steel alloys designed to withstand harsh downhole conditions[4]. Quality control during manufacturing ensures that each coil meets industry standards.
Yes, coiled tubing can be utilized for drilling operations known as Coiled Tubing Drilling (CTD), which allows efficient drilling without making connections between pipe joints[9].
Common applications include well intervention (cleanouts), stimulation (acidizing), drilling operations, fishing for lost tools, and performing casing patches in wells[10].
