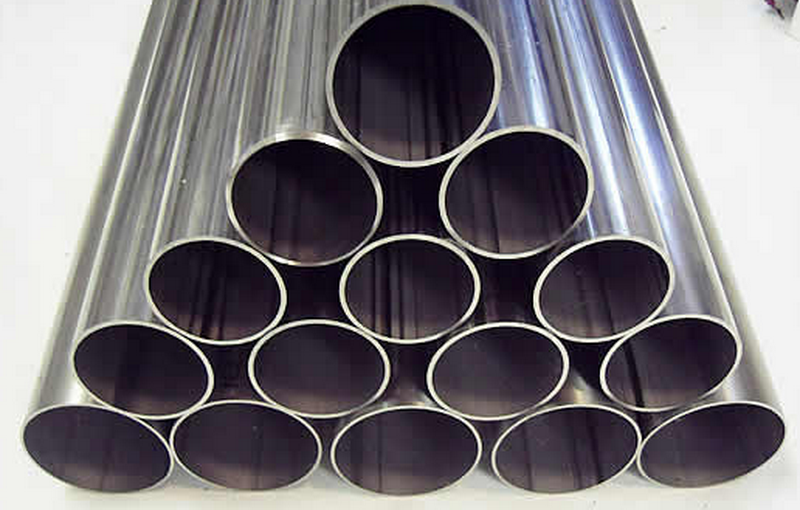

Welding 416 stainless steel tube is a topic of interest for many fabricators and metalworkers due to the unique characteristics of this material. The 416 stainless steel grade is a martensitic stainless steel known for its high machinability, moderate corrosion resistance, and good strength. However, welding this material poses specific challenges that require careful consideration and expertise. This comprehensive article explores whether you can weld 416 stainless steel tube easily, the best practices, challenges, and tips for successful welding.
416 stainless steel is a martensitic stainless steel alloy that contains chromium, carbon, and a high sulfur content. This sulfur addition improves machinability but adversely affects weldability and ductility. The material offers:
- Good corrosion resistance compared to carbon steel but less than austenitic stainless steels.
- High machinability due to sulfur content.
- Moderate strength and hardness.
- Susceptibility to cracking during welding or forming due to sulfur and hardening characteristics.

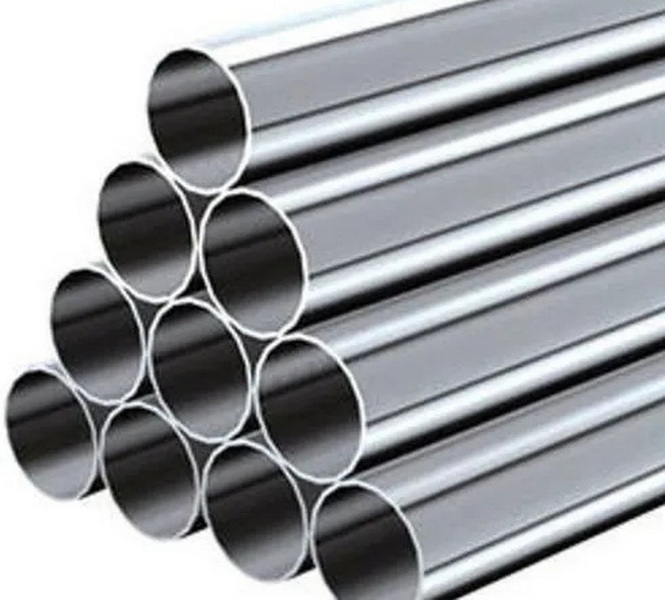

The 416 stainless steel tube is commonly used in applications such as:
- Aircraft collector rings
- Exhaust manifolds
- High-temperature chemical process equipment
- Components requiring good machinability and moderate corrosion resistance
Welding 416 stainless steel tube is generally not recommended for beginners or casual welders because of its high sulfur content and hardening behavior, which make it prone to cracking during and after welding. However, it is possible to weld it successfully with the right techniques, equipment, and precautions.
- Hot Cracking: Sulfur in 416 stainless steel causes hot cracking during welding.
- Cold Cracking: The hardening property of the steel can lead to cold cracking post-weld.
- Distortion and Warping: Due to low thermal conductivity and high thermal expansion, the tube may warp if heat input is not controlled.
- Porosity: Hydrogen can react with sulfur, causing porosity and weld defects.
- Corrosion Resistance Loss: Excessive heat or improper filler metals can reduce corrosion resistance.
- TIG (Tungsten Inert Gas) Welding: Preferred for precision and control, especially for thin-walled tubes.
- MIG (Metal Inert Gas) Welding: Can be used but requires careful parameter control.
- Spot Welding: Possible for certain applications but limited.
Oxyacetylene welding is generally avoided due to the high risk of cracking.
Preheat the 416 stainless steel tube to 200-300°C (392-572°F) before welding to reduce thermal stress and minimize cracking risk.
- Use low-hydrogen electrodes such as grade 410 for strength.
- Austenitic stainless steel fillers like grade 308 or 309 are suitable for flexibility and crack resistance.
- Avoid nickel-based fillers due to the risk of low melting eutectics causing cracks.
- Keep heat input low to prevent excessive dilution and overheating.
- Use short weld passes and allow cooling between passes.
- Use backing bars or copper clamps to act as heat sinks and reduce distortion.
- Slow cooling after welding to reduce residual stress.
- Post-weld annealing or stress relief heat treatment may be necessary to restore mechanical properties and reduce cracking risk.
- Ensure tight fit-up with minimal gaps to reduce filler metal usage and heat input.
- Clean the tube thoroughly with dedicated stainless steel brushes and tools to avoid contamination.
1. Material Preparation: Clean the tube surface with stainless steel brushes and degrease.
2. Preheat: Heat the tube to 200-300°C using an oven or torch.
3. Set Up Welding Parameters: Use DC straight polarity, adjust amperage according to tube thickness (e.g., 60-95 amps for thin tubes).
4. Tungsten Preparation: Sharpen tungsten to a fine point for focused arc.
5. Shielding Gas: Use 100% argon at 15-20 CFH for front and back purging to prevent oxidation.
6. Tack Weld: Place tack welds every inch or less to maintain alignment.
7. Welding: Use a push angle of 10-15 degrees, maintain consistent travel speed, and feed filler rod evenly.
8. Cooling: Allow the weld to cool slowly; avoid quenching.
9. Post-Weld Treatment: Perform stress relieving or annealing if required.
Welding 416 stainless steel tube is not inherently easy due to its high sulfur content and hardening characteristics, which make it prone to cracking and distortion. However, with proper preparation, preheating, careful selection of filler materials, controlled heat input, and post-weld treatments, successful welding is achievable. TIG welding is the preferred method for precision and control, especially for thin-walled tubes. Experienced welders who follow best practices can produce strong, durable welds on 416 stainless steel tube suitable for demanding applications.
Yes, 309 filler wire can be used for welding 416 stainless steel tube, especially when the welded area is not under stress. It offers good flexibility and reduces cracking risk compared to 410 filler.
TIG welding is the best method for 416 stainless steel tube due to its precise heat control and ability to produce clean, strong welds with minimal distortion.
Preheating to 200-300°C is recommended to reduce the risk of hot and cold cracking caused by thermal stresses during welding.
The main risks include hot cracking, cold cracking, porosity, distortion, and loss of corrosion resistance if welding parameters and filler materials are not properly selected.
Yes, post-weld heat treatment such as annealing or stress relieving helps restore mechanical properties, reduce residual stresses, and minimize cracking risk.
