Stainless steel tube end forming is a critical manufacturing process used across many industries, including automotive, aerospace, HVAC, and medical sectors. The ability to shape the ends of stainless steel tubes without cracking is essential for ensuring structural integrity, performance, and longevity of the final product. This comprehensive article explores the challenges, methods, and best practices for stainless steel tube end forming, focusing on how to prevent cracking during the process.
Stainless steel tube end forming involves reshaping the tube ends to specific geometries such as flares, beads, flanges, or swages. These end forms facilitate connections, improve assembly ease, or meet pressure and flow requirements. The process can include reducing, expanding, flaring, or beading the tube ends.
Stainless steel is favored for its corrosion resistance, strength, durability, and aesthetic appeal. It contains at least 11% chromium, which forms a protective oxide layer that self-heals when damaged. This makes stainless steel tubes ideal for harsh environments, including marine, aerospace, and chemical applications.
Despite its advantages, stainless steel presents unique challenges in end forming:
- Work Hardening: Austenitic stainless steels work harden rapidly, increasing strength but reducing ductility during forming.
- Weld Seam Sensitivity: Weld seams can crack or fold inward during reduction due to differential elongation rates.
- Material Variability: Different stainless steel grades and suppliers can vary in formability.
- Tooling and Equipment: The design, material, and surface finish of forming tools significantly affect outcomes.
- Lubrication and Rigidity: Proper lubrication and machine rigidity are crucial to avoid cracking and tool wear.
Several methods are used to form stainless steel tube ends, each with advantages and limitations.
Ram forming is a widely used method where the tube is clamped, and a ram tool pushes the tube end into the desired shape. It works the entire circumference simultaneously, offering high-speed production but limited to simpler end forms.
Rotary and roll forming gradually work the tube circumference, ideal for sharp angles and radical diameter changes. These methods reduce stress concentration and cracking risk by more gradual deformation.
A proprietary single-operation process combining cutoff and end forming, Shear-Form® is effective for small diameter stainless steel tubes, providing high-speed capability and precision.
Spinning involves rotating the tube while shaping, and segmented tool sizing uses multiple tools to form the tube end. Both methods allow complex shapes and better control over material flow.
Cracking during end forming is a major concern, but it can be minimized or eliminated by addressing several factors:
- Choose stainless steel grades with better formability for your application.
- Test tubes from different suppliers to find the best material behavior.
- Ensure the tube ends are cut square and deburred to avoid stress risers.
- Use tools with optimized transition angles to reduce abrupt diameter changes.
- Select tool materials with proper heat treatment and surface coatings to reduce friction.
- Maintain tool surface finish to prevent scoring and stress concentration.
- Control forming speed to avoid excessive strain rates.
- Apply adequate lubrication to reduce friction and heat buildup.
- Use machines with high rigidity to maintain consistent forming pressure.
- Pre- or post-forming heat treatments can reduce residual stresses.
- Thermal stress relief or solution annealing may be necessary for certain stainless steel grades.
- Avoid forming ferritic stainless steels at low temperatures to prevent brittle failure.
When end forming tubes that have been bent, it is important to account for elongation and dimensional changes caused by bending. End forming after bending allows precise control and reduces cracking risk near bends.

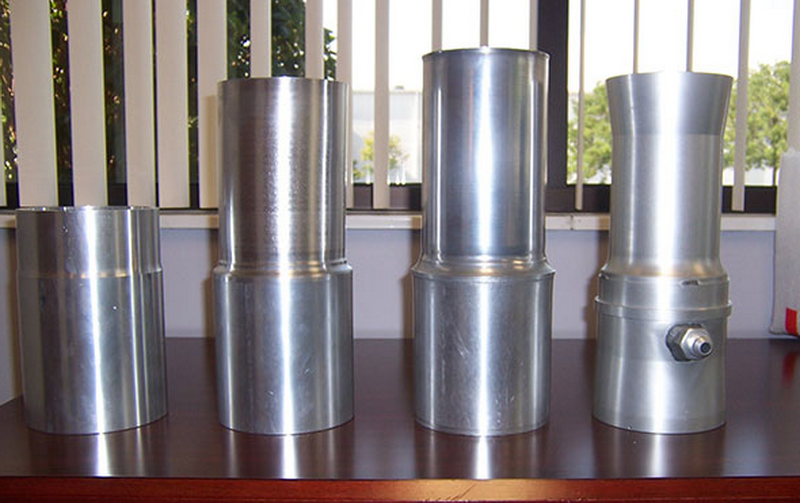

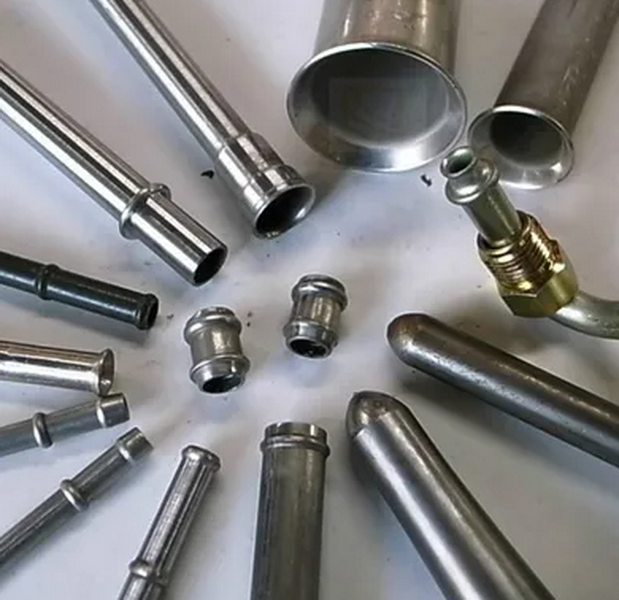

| End Form Type | Description |
|---|---|

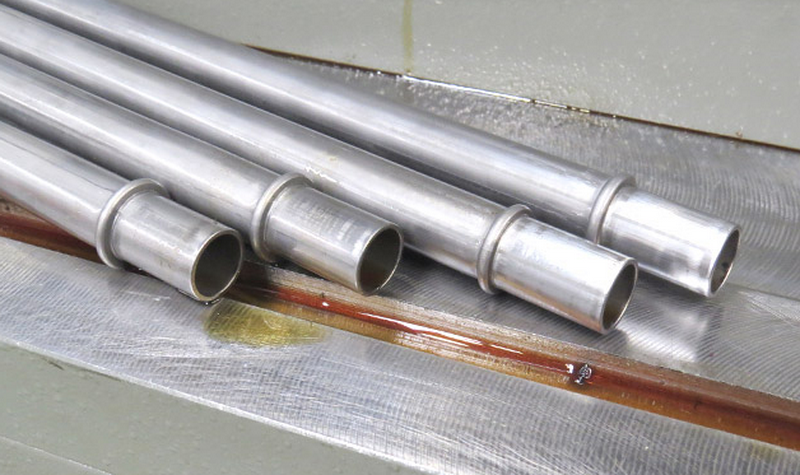

| Beading | Raised ring around the tube end for reinforcement |
| Flanging | Outward bending of the tube end to form a flange |
| Flaring | Expanding the tube end to a larger diameter |
| Swaging | Reducing the tube end diameter by compressive deformation |
Stainless steel tube end forming is used in:
- Fuel injectors and exhaust systems in automotive and aerospace industries
- HVAC and condenser tubes for efficient fluid transfer
- Medical devices requiring precise, hygienic tubing connections
- Architectural and structural elements needing corrosion resistance and aesthetic appeal
- Military and marine equipment exposed to harsh environments
- Understand the Material: Know the grade, wall thickness, and weld characteristics.
- Optimize Tooling: Design tools for smooth transitions and minimal friction.
- Control Process Variables: Adjust speed, lubrication, and machine rigidity.
- Inspect and Test: Use non-destructive testing to detect early signs of cracking.
- Collaborate with Suppliers: Work closely with material and tooling suppliers for best results.
Finite Element Analysis (FEA) is increasingly used to simulate the end forming process. By modeling the stresses and strains during forming, engineers can predict potential cracking zones and optimize tooling and process parameters before physical trials. This reduces trial-and-error costs and improves product quality.
Incremental forming applies small, controlled deformations in multiple steps rather than a single large deformation. This technique reduces strain concentration and work hardening, significantly lowering the risk of cracking in stainless steel tube end forming.
In some specialized applications, cryogenic forming is used where the stainless steel tube is cooled to very low temperatures before forming. This can improve ductility in certain stainless steel grades and reduce cracking, although it requires specialized equipment and handling.
Applying surface treatments such as shot peening or laser peening before forming can introduce beneficial compressive stresses on the tube surface. These treatments improve fatigue resistance and reduce crack initiation during end forming.
Weld seams are often the weakest points during forming. To prevent cracking:
- Use seamless tubes or high-quality welds with proper heat treatment.
- Avoid sharp diameter reductions near the weld seam.
- Employ localized heating or stress relief if necessary.
Tool wear can cause surface defects and increase cracking risk. To mitigate:
- Use tool materials with high hardness and wear resistance.
- Maintain proper lubrication.
- Regularly inspect and replace worn tooling.
Variations in tube wall thickness or material properties can cause dimensional inconsistencies. Solutions include:
- Tighten material specifications and quality control.
- Use adaptive tooling or process controls.
- Implement in-line measurement and feedback systems.
Efficient stainless steel tube end forming reduces material waste, energy consumption, and rejects, contributing to sustainability goals. By minimizing cracking and defects, manufacturers save costs on rework and scrap, improving profitability. Additionally, high-quality formed tubes extend product life, reducing replacement frequency and environmental impact.
Stainless steel tube end forming without cracking is achievable through a combination of proper material selection, advanced forming methods, precise tooling design, and controlled process parameters. Understanding the unique properties of stainless steel and addressing the challenges of work hardening, weld seam integrity, and tooling friction are key to producing high-quality, crack-free end forms. Incorporating advanced techniques such as Finite Element Analysis, incremental forming, and surface treatments further enhances success rates. With the right approach, stainless steel tubes can be reliably formed to meet demanding industrial applications, ensuring durability, performance, and safety.
Cracking is mainly caused by excessive strain, work hardening, weld seam weaknesses, improper tooling design, and insufficient lubrication during forming.
Not all grades behave the same; austenitic stainless steels generally form better than ferritic grades, which are prone to brittle failure at low temperatures.
Heat treatment can relieve residual stresses and improve ductility, especially for welded or heavily worked tubes, but it depends on the grade and application.
Ram forming, rotary forming, and Shear-Form® are common methods, with rotary and roll forming preferred for complex shapes to reduce cracking risk.
Bending elongates the tube and changes dimensions, so end forming after bending allows better control and reduces cracking near bends.
