Bending stainless steel tubes can be challenging due to their high tensile strength and rigidity. However, with the right tools and techniques, it is possible to achieve precise and high-quality bends. This article will explore the process of bending stainless steel tubes using a 1/2 inch bender, discussing the challenges, methods, and best practices involved.
Stainless steel tubes are widely used in various industries due to their corrosion resistance and durability. However, their strength and hardness make them difficult to bend without specialized equipment. A 1/2 inch stainless steel tube bender is a common tool used for bending small diameter tubes, but it requires careful handling to avoid kinking or collapsing the tube.
1. Material Strength: Stainless steel is known for its high tensile strength, which makes it resistant to deformation. This requires more force and specialized techniques to bend without causing damage.
2. Work Hardening: During the bending process, stainless steel undergoes work hardening, becoming more brittle and prone to cracking. This necessitates careful control over the bending process.
3. Springback: Stainless steel exhibits significant springback, meaning it tends to return to its original shape after bending. This requires overbending to achieve the desired angle.
There are several methods used to bend stainless steel tubes, each with its own advantages and applications.
Mandrel bending involves inserting a solid mandrel inside the tube to prevent it from collapsing during the bending process. This method is ideal for achieving tight radius bends and maintaining the tube's roundness.
Rotary draw bending uses a rotating die to form the desired bend in the tubing. This method is precise and suitable for high-precision components, but it can lead to wall thinning and ovality if not properly managed.
Three roll bending involves passing the tube through three consecutive rollers to create spiral bends. This method is used for larger radius bends and is less common for stainless steel due to the material's rigidity.
Compression bending involves clamping one end of the tube in a stationary die and pulling the other end to form the bend. This method is suitable for thicker tubes and larger diameters but is less precise for tight radius bends.

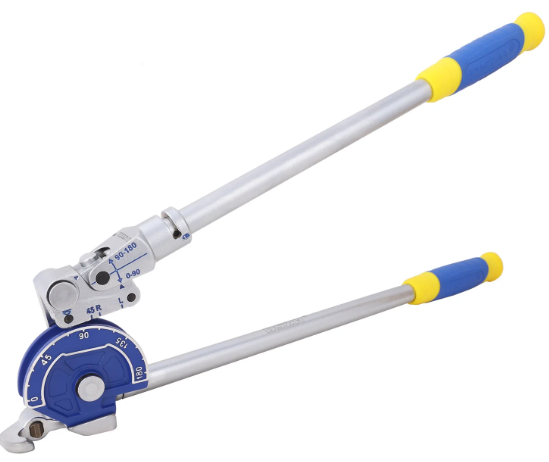

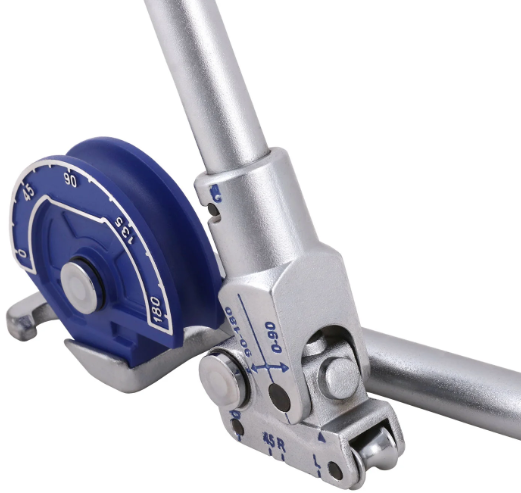

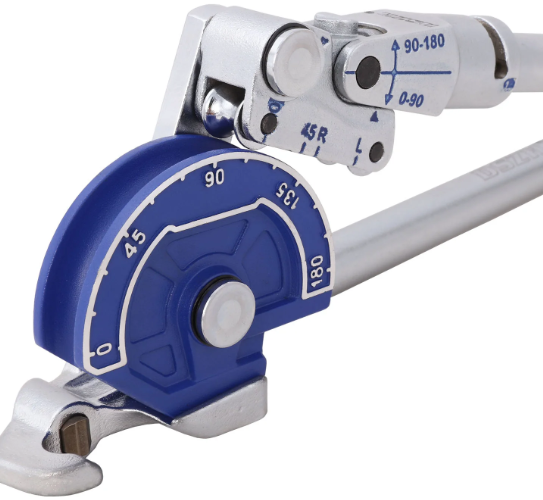

A 1/2 inch stainless steel tube bender is suitable for bending small diameter tubes. Here's how to use it effectively:
Clean the tubing to remove any contaminants and mark the bend points accurately using a ferrule for consistent visibility.
Align the tubing on the bender using reference points or a protractor, ensuring it is securely positioned.
Apply pressure gradually to achieve the desired angle. Compensate for springback by bending slightly beyond the planned angle.
- Lubrication: Use a heavy drawing lubricant to minimize friction and prevent kinks.
- Safety Gear: Wear gloves and safety glasses to protect against sharp edges and springback.
- Gradual Bends: Avoid sharp bends and opt for gradual, smooth bends to prevent overstressing the material.
- Kinking: Use internal support like mandrels or fill the tube with dry sand to prevent kinking.
- Wrinkling: Adjust the wiper die and use lubricants to minimize wrinkles.
- Springback: Overbend slightly to compensate for springback.
Regular maintenance is crucial for extending the lifespan of tube bending equipment and ensuring consistent performance. Key practices include:
- Regular Inspection: Conduct routine visual inspections to identify any signs of wear, damage, or irregularities.
- Lubrication: Ensure all moving parts are well-lubricated to prevent friction and reduce wear.
- Die and Mandrel Care: Inspect and clean bending dies and mandrels regularly to maintain precision.
- Calibration: Periodically check and calibrate the machine to ensure accurate bending angles and dimensions.
1. Misplaced Pressure: Ensure pressure is applied correctly to avoid flattening or buckling the tube.
2. Using the Wrong Machine: Choose a bender suitable for the tube's material and diameter.
3. Insufficient Wall Thickness: Use tubes with adequate wall thickness to prevent wrinkling or cracking.
For more complex bends, such as compound bends or multiple bends in close proximity, advanced techniques may be required:
- Compound Bending: Use specialized dies or multiple bending operations to achieve complex shapes.
- Multi-Bend Operations: Plan the bending sequence carefully to avoid interference between bends.
The choice of tubing material affects the bending process significantly. Stainless steel is popular due to its durability, but other materials like copper or aluminum may require different techniques:
- Material Selection: Consider factors like tensile strength, ductility, and corrosion resistance when selecting tubing materials.
- Material-Specific Techniques: Adjust bending techniques based on the material's properties to achieve optimal results.
Bending stainless steel tubes with a 1/2 inch bender requires careful planning and execution. By understanding the challenges, selecting the right method, and following best practices, you can achieve precise and high-quality bends. Always prioritize safety and use the appropriate tools and techniques to ensure successful outcomes.
Mandrel bending is the best method for thin-walled stainless steel tubes as it provides internal support, preventing collapse and maintaining the tube's roundness.
To prevent kinking, use a mandrel or fill the tube with supportive materials like dry sand. Ensure the bender is properly calibrated and use lubricants to reduce friction.
Wear protective gear such as gloves and safety glasses. Ensure the workspace is clear of obstacles and use proper lifting techniques to avoid injury.
A 1/2 inch bender is designed for smaller diameter tubes. For larger tubes, use a bender with a suitable capacity to avoid damaging the tube or the tool.
Choose a heavy drawing lubricant that reduces friction and prevents kinking. Apply it generously to the tubing before bending.
