Can A 5mm Stainless Steel Cable Support Heavy Loads?

Views: 222     Author: Robert     Publish Time: 2025-06-25      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

What Is a 5mm Stainless Steel Cable?

>> Common Constructions

>> Stainless Steel Grades

Strength and Load Capacity of 5mm Stainless Steel Cable

>> Breaking Strength

>> Working Load Limit (WLL)

>> Factors Affecting Load Capacity

Applications of 5mm Stainless Steel Cable

Installation and Maintenance

>> Installation Tips

>> Maintenance Guidelines

Conclusion

Frequently Asked Questions (FAQs)

>> 1. What is the breaking strength of a 5mm stainless steel cable?

>> 2. Can a 5mm stainless steel cable be used for heavy lifting?

>> 3. Which stainless steel grade is best for outdoor or marine environments?

>> 4. How flexible is a 5mm stainless steel cable?

>> 5. How should I maintain a 5mm stainless steel cable to ensure longevity?

When it comes to selecting cables for heavy-duty applications, understanding the capabilities of a 5mm stainless steel cable is crucial. This article provides a comprehensive exploration of the strength, construction, applications, maintenance, and safety considerations of 5mm stainless steel cables. We will also include visual aids and video references to enhance your understanding. Whether you're considering this cable for marine, architectural, industrial, or lifting purposes, this guide will equip you with the knowledge to make informed decisions.

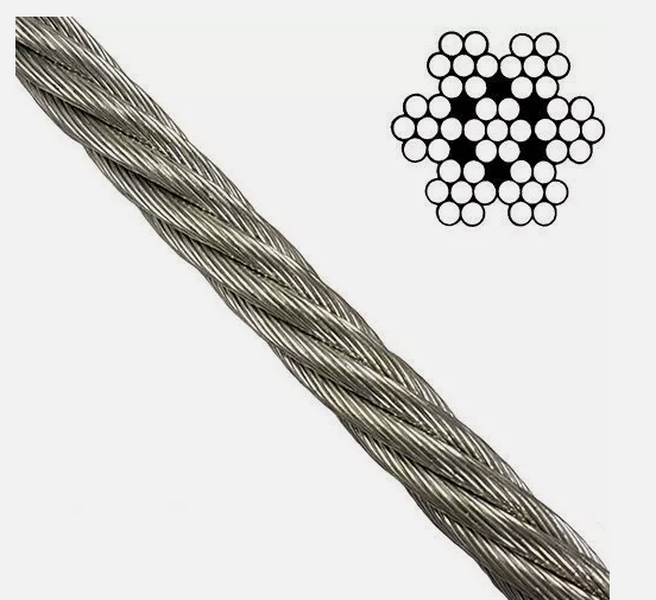

1mm stainless steel cable_1

What Is a 5mm Stainless Steel Cable?

A 5mm stainless steel cable refers to a wire rope with a diameter of 5 millimeters, typically constructed from multiple strands of stainless steel wires twisted together. The construction type and stainless steel grade significantly influence its strength and flexibility.

Common Constructions

- 7x19 Construction: Consists of 7 strands with 19 wires in each strand. This design offers excellent flexibility and fatigue resistance, making it ideal for applications involving bending or dynamic loads.

- 1x19 Construction: Comprises 19 wires twisted into a single strand. It is stiffer and has higher tensile strength, suitable for straight runs without bends, such as architectural balustrades.

Stainless Steel Grades

- Type 304: Provides good corrosion resistance and strength, suitable for indoor and mild outdoor environments.

- Type 316: Marine-grade stainless steel with superior corrosion resistance, especially against saltwater and harsh environments, making it ideal for coastal or marine applications.

Strength and Load Capacity of 5mm Stainless Steel Cable

Breaking Strength

The breaking strength of a 5mm stainless steel cable varies based on construction and grade but generally ranges from approximately 1,420 kg (around 3,130 lbs) for 7x19 Type 316 cables to higher values for 1x19 constructions.

- A 5mm 7x19 stainless steel cable made of marine-grade stainless steel has a minimum breaking load of about 1,448 kg (approximately 3,190 lbs).

- A 5mm 1x19 stainless steel cable, being stiffer and stronger, can have even higher breaking strengths, suitable for applications requiring minimal stretch.

Working Load Limit (WLL)

The working load limit is the maximum safe load the cable can handle during regular use, typically calculated using a safety factor of 5:1 (breaking strength divided by 5).

- For a 5mm cable with a breaking strength of ~1,448 kg, the WLL would be approximately 289 kg (about 637 lbs).

- Working load limits can vary around 740 lbs (335 kg) for certain 5mm stainless steel cables, depending on tensioning and application specifics.

Factors Affecting Load Capacity

- Cable Construction: 1x19 cables have higher tensile strength but less flexibility; 7x19 cables are more flexible but slightly lower in strength.

- Grade of Stainless Steel: Type 316 offers better corrosion resistance, which helps maintain strength over time in harsh environments.

- Installation and Tensioning: Proper tensioning is critical to ensure the cable performs at its rated capacity and minimizes deflection.

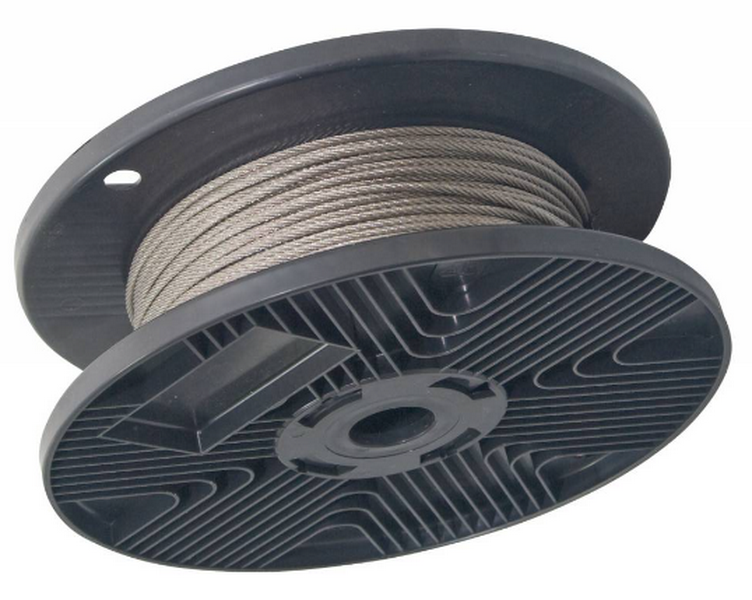

1mm stainless steel cable_4

Applications of 5mm Stainless Steel Cable

Due to its balance of strength, flexibility, and corrosion resistance, 5mm stainless steel cable is widely used in various fields:

- Architectural Balustrades and Railings: Provides a sleek, modern look with strong safety performance, especially in outdoor and coastal environments.

- Marine and Boating: Used for rigging, lifelines, and securing loads due to its corrosion resistance and strength.

- Industrial Lifting and Rigging: Suitable for medium load lifting tasks when used with appropriate fittings and safety factors.

- Suspended Shelves and Signage: Offers aesthetic and functional support in commercial and residential settings.

- Theatre and Display Applications: Flexible 7x19 cables are used for rigging and display purposes where corrosion resistance and flexibility are required.

Installation and Maintenance

Installation Tips

- Use proper fittings such as swaged terminals, thimbles, and end sleeves to maintain cable integrity and load capacity.

- Tension cables adequately to minimize deflection; for example, in railing systems, post spacing should not exceed 5 feet to comply with building codes.

- Cut cables with appropriate tools like grinders with slimline cutting discs to avoid fraying and damage.

Maintenance Guidelines

- Regularly inspect cables for signs of wear, corrosion, or broken strands.

- Replace cables on a schedule based on application and environmental exposure, especially in marine or harsh conditions.

- Avoid welding or grinding near cables to prevent heat damage.

Conclusion

A 5mm stainless steel cable is a versatile and robust choice for many heavy load applications, balancing strength, flexibility, and corrosion resistance. With breaking strengths around 1,420 kg and working load limits near 290 kg, these cables are well-suited for architectural, marine, industrial, and display uses. Choosing the right construction (7x19 for flexibility or 1x19 for stiffness), proper installation, and maintenance are essential to maximize performance and safety. Whether for deck railings, rigging, or medium lifting tasks, a 5mm stainless steel cable can confidently support heavy loads when applied correctly.

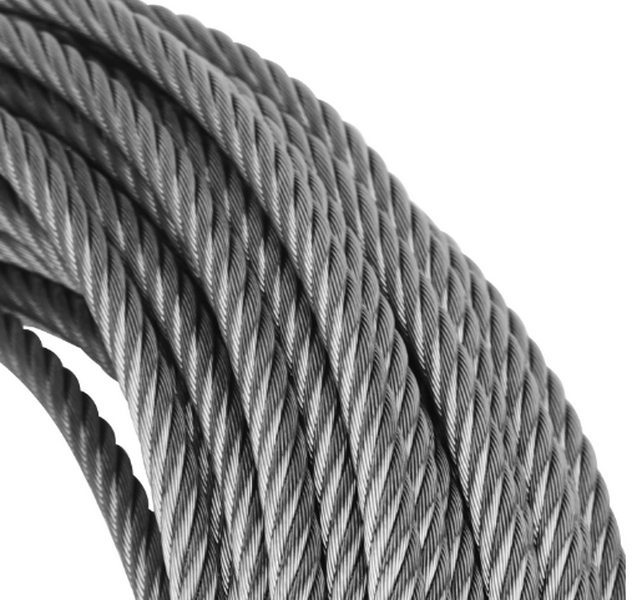

stainless steel cable_6

Frequently Asked Questions (FAQs)

1. What is the breaking strength of a 5mm stainless steel cable?

The breaking strength typically ranges around 1,420 to 1,448 kg (approximately 3,130 to 3,190 lbs) for a 5mm 7x19 stainless steel cable made from marine-grade stainless steel.

2. Can a 5mm stainless steel cable be used for heavy lifting?

Yes, it can support medium to heavy loads within its working load limit, which is usually about one-fifth of its breaking strength (around 289 kg or 637 lbs). Proper installation and safety factors must be observed.

3. Which stainless steel grade is best for outdoor or marine environments?

Type 316 stainless steel is preferred for its superior corrosion resistance to saltwater and harsh weather conditions, making it ideal for marine and coastal applications.

4. How flexible is a 5mm stainless steel cable?

Flexibility depends on construction: 7x19 cables are highly flexible and suitable for applications requiring bending around pulleys or corners, while 1x19 cables are stiffer and better for straight runs.

5. How should I maintain a 5mm stainless steel cable to ensure longevity?

Regular inspection for wear and corrosion, proper tensioning, avoiding heat damage, and replacing cables according to usage and environment will ensure long service life.
