Deck railings are essential for safety and aesthetics in outdoor spaces. Among the many materials used for cable railings, stainless steel cables have become popular due to their durability, corrosion resistance, and sleek appearance. A common question arises: Can 1/16 coated stainless steel cable be used for deck railing? This article explores the suitability, benefits, limitations, installation tips, and maintenance of 1/16 coated stainless steel cable for deck railing applications.

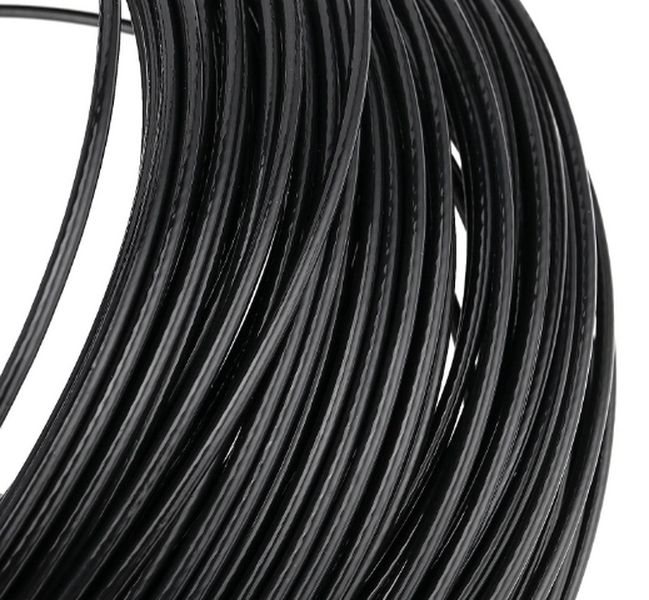

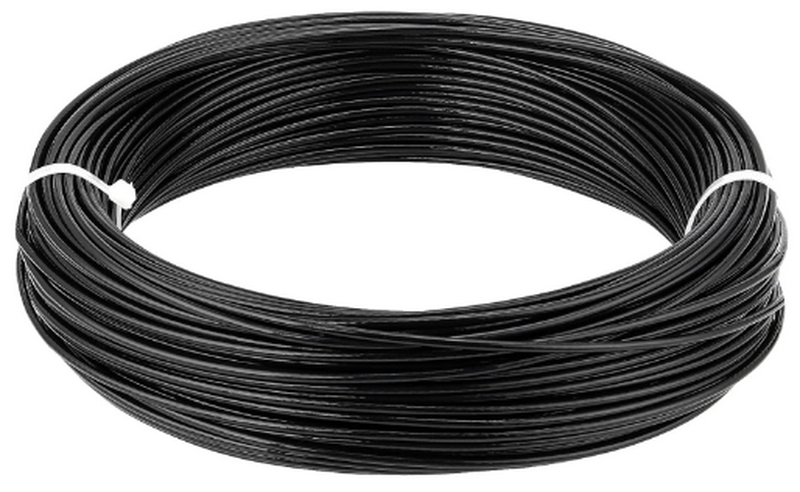

1/16 coated stainless steel cable refers to stainless steel wire rope with a diameter of 1/16 inch that has a protective coating, often PVC or similar polymer. The coating serves to protect the cable from abrasion, UV damage, and dirt accumulation, and sometimes adds color for aesthetic purposes.
The core cable is typically made from stainless steel grades such as 304 or 316, with 316 being marine-grade and offering superior corrosion resistance, especially in harsh environments like coastal areas[1][2][4].
Stainless steel cables come in different strand constructions:
- 7x7: Seven strands with seven wires each, offering flexibility but more stretch.
- 7x19: Seven strands with 19 wires each, even more flexible but less rigid.
- 1x19: One strand with 19 wires, very rigid and low stretch, ideal for cable railings[9][11].
1/16 inch cables are often 7x7 or 7x19 constructions, which are more flexible but less rigid and have lower breaking strength compared to 1x19 cables.
The primary function of deck railing cables is to provide a safe barrier that prevents falls while maintaining an unobstructed view. For this, the cable must have sufficient tensile strength and minimal stretch.
- Breaking Strength: 1/16 inch stainless steel cables typically have a breaking strength around 480 lbs (for 7x7 construction, Grade 304 stainless steel)[3]. This is significantly lower than 1/8 inch cables, which have breaking strengths around 1,780 lbs for 1x19 construction[11].
- Load Requirements: Building codes for deck railings usually require cables to withstand substantial loads and maintain tension without excessive sagging or failure.
Because 1/16 cables have lower strength and are more flexible, they are generally not recommended for primary deck railing applications where safety codes apply. They may be suitable for decorative or light-duty uses but could fail under heavy loads or impact[7][11].
The coating on the cable adds a protective layer, but it also requires compatible hardware and slightly larger holes in posts for installation. Coated cables may fade, crack, or peel over time if exposed to UV rays and weather, requiring maintenance or replacement[9][11].
- Aesthetic Appeal: The thin 1/16 inch cable offers a very minimalistic look, preserving views and blending well with modern architecture.
- Corrosion Resistance: When coated and made from marine-grade stainless steel, it resists rust and corrosion, especially in less demanding environments[1][2].
- Flexibility: Easier to handle and install in tight or curved spaces due to its flexibility.
- Cost: Generally less expensive than thicker cables.
- Lower Strength: May not meet safety codes for deck railings, especially in areas with high pedestrian traffic or where fall protection is critical.
- More Stretch: 7x7 or 7x19 construction cables stretch more, requiring frequent tension adjustments.
- Durability of Coating: Coatings degrade under UV exposure, requiring upkeep.
- Hardware Compatibility: Requires specialized fittings designed for coated cables.
- Measure the span between posts carefully.
- Use posts designed to withstand cable tension without bending.
- Choose compatible hardware designed for coated cables.
- Drill holes slightly larger to accommodate the coating.
- Use proper swaging tools for fittings to avoid damage.
- Install tensioners and clamps to maintain cable tautness.
- Tighten cables evenly, starting from the middle and moving outward.
- Check tension regularly to prevent sagging.
- Avoid sharp bends or 90-degree turns in cable runs to reduce stress on posts[5][6][10].
- Ensure cables are spaced according to code, typically 3 inches apart vertically.
- Confirm cables are level and taut to prevent deflection over time.
- Inspect cables regularly for signs of wear, corrosion, or coating damage.
- Clean cables with mild soap and water to remove dirt and salt deposits.
- Re-tension cables as needed to maintain safety and appearance.
- Replace cables or coating if deterioration is evident, especially in coastal environments[8].
While 1/16 coated stainless steel cable offers an attractive, minimalistic look and corrosion resistance, it is generally not recommended for deck railing applications where safety and building codes must be met. Its lower tensile strength and higher flexibility limit its use to decorative or light-duty applications rather than primary safety barriers. For deck railings, thicker cables such as 1/8 inch or 3/16 inch 1x19 marine-grade stainless steel cables are preferred for their superior strength, rigidity, and durability.
If you choose to use 1/16 coated stainless steel cable, ensure it is installed with proper hardware, tensioned correctly, and maintained regularly to maximize safety and lifespan. Always consult local building codes and professionals before installation.
No, 1/16 inch cable typically does not meet the minimum strength and safety requirements for deck railings in most building codes. Thicker cables like 1/8 inch or 3/16 inch are usually required.
Coatings protect cables from abrasion, UV damage, and dirt accumulation. They can also add color for aesthetic purposes but may degrade over time in sunlight.
Maintenance should be done at least annually, including cleaning and tension checks. Replacement depends on wear but may be necessary every few years, especially in harsh environments.
Specialized fittings designed for coated cables are required, including swaging tools and tensioners compatible with the cable diameter and coating thickness.
While 316 stainless steel cables are corrosion resistant, 1/16 cables have lower strength and coating durability may be compromised in saltwater environments. Thicker cables with marine-grade stainless steel and possibly duplex stainless steel are better suited.
