Stainless Steel Coiled Tubing has become an essential material across various industries, including oil and gas, chemical processing, pharmaceuticals, food and beverage, and marine applications. In harsh environments characterized by extreme temperatures, aggressive chemicals, and high-pressure conditions, the performance and reliability of Stainless Steel Coiled Tubing are critical. Mastering the best practices for its selection, installation, and ongoing maintenance ensures system integrity, safety, and economical operation.
This guide explores practical strategies and expert insights for every stage, from choosing the right tubing material to avoiding installation pitfalls and performing essential maintenance. The article is structured for professionals and newcomers alike, offering a roadmap to the optimal use of Stainless Steel Coiled Tubing under demanding conditions.

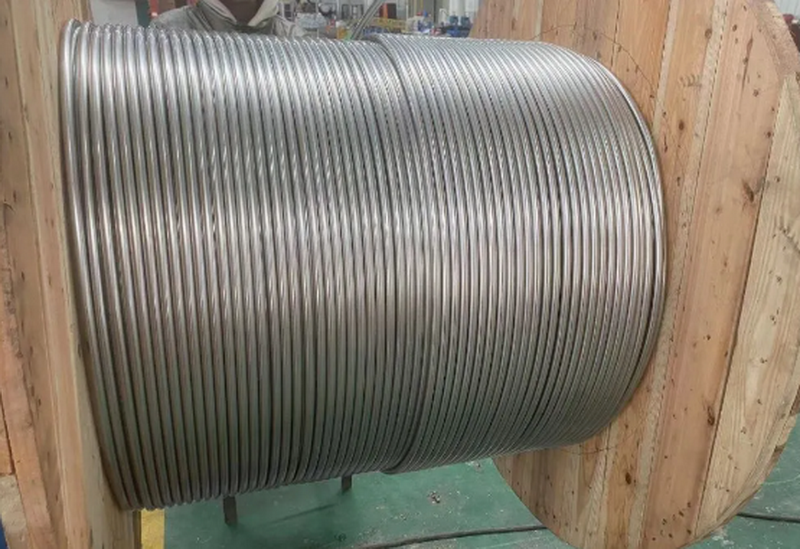

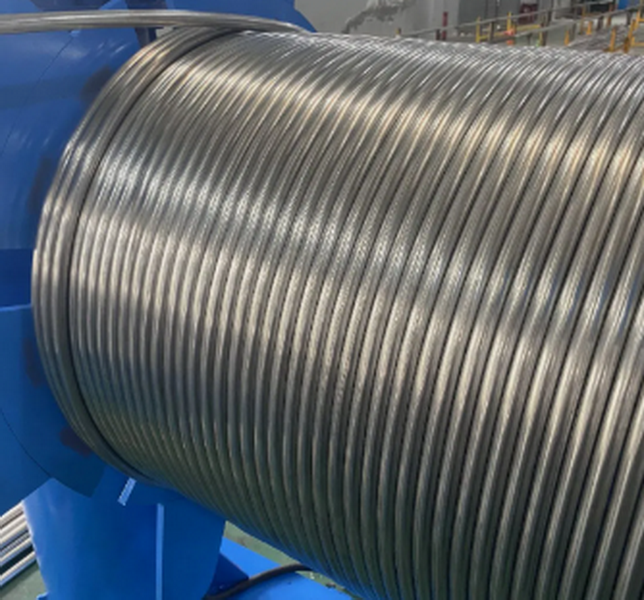

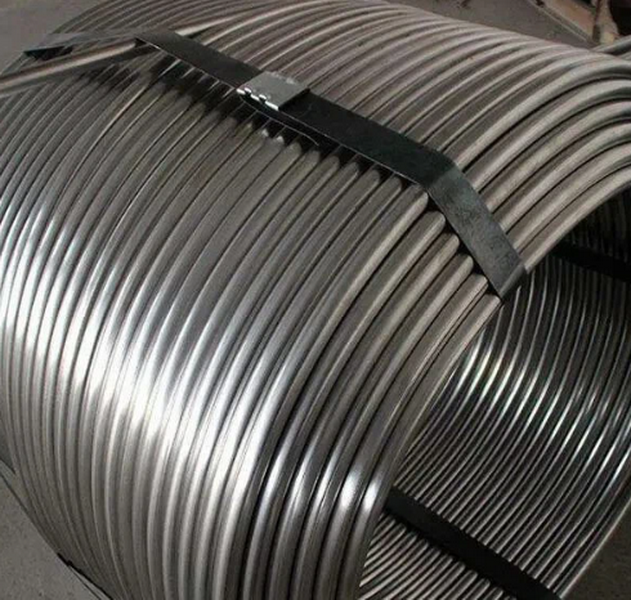

Stainless Steel Coiled Tubing is a unique product consisting of a continuous length of seamless or welded stainless steel tube wound into a compact coil. Its design offers several advantages:
- Reduced Connection Points: Fewer joints minimize potential leakage and make installation quicker.
- Corrosion Resistance: Grades are chosen for high resistance to chemicals, moisture, and temperature extremes.
- Versatility: Used for transporting fluids, instrumentation, control lines, and heat exchange, among other applications.
- Customizable: Tubing can be tailored in length, diameter, and wall thickness to fit specific project requirements.
- Efficient Routing: Coils allow smooth routing through congested spaces, improving system design flexibility.
Stainless Steel Coiled Tubing can be found in well intervention work, downhole installations, subsea control systems, chemical injection, HVAC systems, and more. Its ability to withstand severe operational environments makes it indispensable for critical applications.
Selecting the best material is foundational for long-term success:
| Stainless Steel Grade | Features | Typical Applications |
|---|---|---|
| 304/304L | Excellent general corrosion resistance, affordable | General industry, food processing |
| 316/316L | Superior resistance to chlorides and chemicals | Marine, pharmaceuticals, chemical plants |
| Duplex/Super Duplex | High strength, outstanding stress corrosion resistance | Offshore, subsea, aggressive chemicals |
| 904L, 321, 347 | Specialized for high temperature/corrosive media | Petrochemical, specialized heat exchangers |
- Seamless Tubing: Offers consistent wall thickness, less risk of failure under pressure, and is preferred for ultra-critical or high-pressure projects.
- Welded Tubing: Economical and suitable for less demanding scenarios, with quality manufacturing techniques minimizing risk for many standard uses.
Careful material selection based on environmental analysis, process media, operating temperature, and anticipated pressure is vital to prevent premature failure.
Before installation, several essential design aspects must be considered to ensure optimum system performance:
- System Pressure Rating: Select appropriate wall thickness and diameter based on desired pressure handling.
- Minimum Bend Radius: Following manufacturer-provided minimum bend radius preserves mechanical integrity.
- Flow Rate Requirements: Ensure inner diameter supports the necessary flow with minimal pressure drop.
- Routing Environment: Plan paths to avoid sharp bends, abrasive contact, and interference with other process lines.
- Thermal Expansion: Allow for movement where temperature fluctuations occur by integrating expansion loops or flexible supports.
Involving engineering teams in the design stage helps address these factors and mitigates potential risks during installation.
Proper preparation safeguards product quality and streamlines installation:
- Inspect Before Uncoiling: Check for dents, cracks, or contamination along the coil. Reject or clean as necessary.
- Deburring and Cutting: Carefully deburr ends to avoid introduction of particulates and ensure a snug fit with connectors.
- Thorough Cleaning: Use industry-approved solvents and lint-free wipes to prevent process fluid contamination.
- Correct Storage: Keep coils off the ground in dry, well-ventilated spaces. Room temperature or climate-controlled storage can further protect against corrosion and surface staining.
Consistent pre-installation practices reduce downstream problems and improve overall system longevity.
Successful Stainless Steel Coiled Tubing installation relies on the right set of tools:
| Tool/Equipment | Purpose |
|---|---|
| Manual/Hydraulic Bender | Precision marking and shaping of tubing |
| Mandrel | Supports inner diameter, preventing collapse during bends |
| Tube Cutter | Ensures clean, burr-free cuts |
| Deburring Tool | Smoothes out tube ends for safety and sealing |
| Clamps/Brackets | Support tubing, minimize vibration and mechanical wear |
| Protective Equipment | Shields users from injury; includes gloves, eye protection |
Advanced installations may require CNC bending machines or autogenous orbital welding systems for high-purity or complex routes.
- Verify Site Conditions: Assess access, safety, and available room for installation.
- Calculate Coil Length: Account for each route, bend, and fitting to minimize waste and avoid shortages.
- Mark Points for Bends: Use non-permanent markers and flexible measuring tapes to plan accurately.
- Manual Bending: For smaller diameters, a quality tube bender and slow, even pressure create accurate bends.
- Hydraulic or CNC Bending: For larger or thick-walled tubing, advanced machinery ensures precision and repeatability.
- Avoiding Flattening: Internal mandrels maintain the circular shape during tight-radius bends.
- Set Tubing into Position: Carefully uncoil and secure tubing in its planned path, avoiding contact with sharp surfaces.
- Supporting the Coil: Brackets and clamps should be spaced to prevent sagging and allow for thermal expansion.
- Using Certified Fittings: Select appropriate connectors for operating conditions. Compression, flare, and welded fittings are common.
- Applying Sealants: Use PTFE tape for threaded connections; ensure compatibility with stainless steel.
- Welded Connections: If welding is required, purge the tubing with inert gas to prevent oxidation inside the tube; consider orbital welding for purity-critical applications.
- Pressure Test: Perform hydrostatic or pneumatic tests at rated pressure, monitoring for leaks and joint strength.
- Flow Test: Assess flow by running process fluids at operational rates and checking for restrictions or instability.
- Operational Checks: Confirm proper support, absence of vibrations, and accessibility for future maintenance.
These steps, anchored in thorough planning and attention to detail, pave the way for reliable long-term operation.
Harsh environments require resilient materials and vigilant monitoring. Select grades like 316L, Duplex, or other specialty alloys for sites where pitting, crevice corrosion, or chloride-induced attack are prevalent. Protective coatings and regular rinse-downs may further enhance resistance.
Mechanical overload or improper bending can cause cracks or flattening. Respect manufacturer guidance on bend radii and support intervals, and avoid exposing tubing to temperatures beyond its rated limit.
Leak-tight systems depend on careful cutting, clean assembly, and the use of certified fittings. Pressure testing prior to operation identifies problems before fluids are introduced.
While high-performance stainless materials may seem expensive upfront, their durability and reduced maintenance frequently lower life cycle costs.
A chemical plant faced processing highly corrosive solutions at elevated temperatures. Engineers chose 2-inch, 316L Stainless Steel Coiled Tubing for its superior chemical and temperature resistance. The tubing, pre-formed using hydraulic benders, was routed through tight plant infrastructure using custom brackets. Connections utilized orbital welding to achieve contamination-free joints.
Rigorous pressure and helium leak testing preceded commissioning. The outcome was a heat exchanger system with extended uptime, minimal maintenance, and a significant reduction in process leaks, illustrating the value of careful preparation and robust material selection.
A proactive maintenance plan sustains efficiency and prevents unexpected failures.
- Visual Checks: Regularly inspect tubing for abrasions, corrosion spots, dents, or deformation.
- Check Connections: Monitor for leaks; retighten or re-weld as needed.
- Support Integrity: Confirm clamps and brackets are secure and have not shifted under vibration or weight.
- Flush with Industry-Approved Solvents: Remove deposits or contaminants inside tubing.
- Avoid Harsh Acids or Abrasives: Stick to cleaning agents compatible with the steel grade.
- Drying: Prevent corrosion from residual moisture by thoroughly drying cleaned tubes.
Track all maintenance, repairs, and modifications. Well-kept records support troubleshooting and demonstrate compliance with safety regulations.
The industry continues to evolve, driven by operational demands and technological advances.
- New Alloys: Next-generation duplex and super-austenitic stainless steels push the envelope in both strength and corrosion resistance.
- Improved Manufacturing: Tighter tolerances, longer seamless coils, and surface finishing technologies result in more versatile products.
- Embedded Sensors: Some modern tubing is manufactured with built-in sensors for real-time pressure, temperature, and flow monitoring.
- Environmentally Friendly Production: Sustainable manufacturing policies and waste reduction are lowering environmental footprints.
These innovations are helping operators meet higher safety, performance, and sustainability standards.
Stainless Steel Coiled Tubing is a backbone component wherever reliability, performance, and durability are paramount—especially in harsh environments. By adhering to best-in-class materials selection, precise installation procedures, and diligent maintenance, organizations can realize the full benefits of stainless steel tubing: minimized downtime, fewer leaks, lower life cycle costs, and enhanced safety. As applications grow more demanding, leveraging the latest material and manufacturing innovations will ensure continued success, efficiency, and resilience in the most challenging operational settings.
Stainless Steel Coiled Tubing combines excellent corrosion resistance, high mechanical strength, and seamless construction, enabling it to withstand aggressive chemicals, fluctuating temperatures, and extreme pressures. It is particularly valued where system reliability and safety are non-negotiable.
The choice depends on factors like chemical exposure, operating temperature, required pressure rating, and mechanical stress. Consult both the service environment requirements and supplier recommendations to select the optimum alloy and wall thickness for long-term performance.
Yes, manufacturers offer customization in terms of tubing length, diameter, wall thickness, fitting types, and surface finishes. Early engagement with suppliers ensures tubing is tailored to your exact needs, facilitating smoother installation.
Frequent mistakes include using inappropriate fittings, exceeding minimum bend radii, improper cleaning, inadequate support, and skipping vital pressure or leak tests. Following a structured installation process and using certified tools help prevent these issues.
Regular inspections, prompt leak repairs, proper cleaning with compatible solvents, and maintaining records of all service activities are essential. Staying proactive with maintenance greatly reduces costly unplanned downtime.
